    home made stringpot

    Boys and girls,

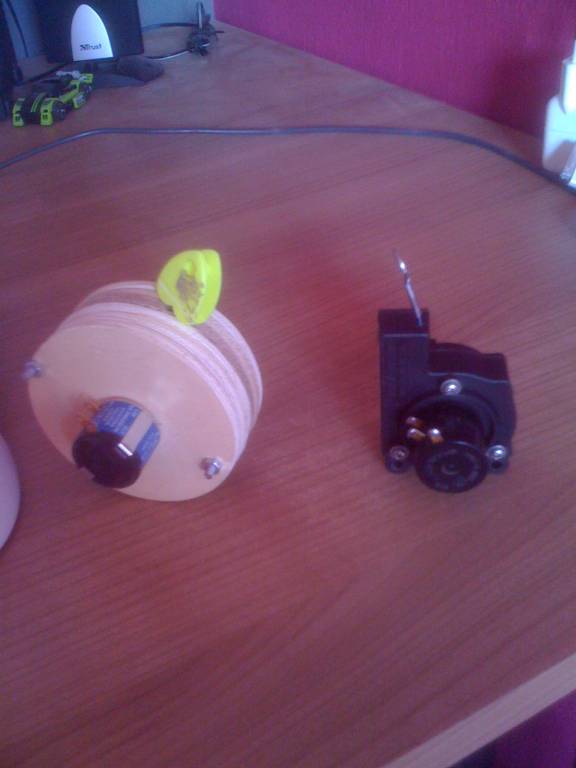

    A few weeks ago i bought a single stringpot from 737NUT. Ive opened it to find out how it worked. I then disigned a simple construction using bits and parts i already had. And i actualy made a working stringpot.
    It has a travel of 70cm/27inches and uses about 7 turns on the 10 turn potmeter.
    I have no idea if it wil work correctly on Stefs(Dnoize) and my throttle witch only has a travel of about 25cm/9inches (including reverse). But we will see.



    Regards,

    Mike
    Reply With Quote Reply With Quote
  2. Post Thanks / Like - 1 Thanks, 0 Likes, 0 Dislikes
    Thanks Matt Olieman thanked for this post
  3. 01-07-2009, 07:23 PM #2
    dnoize
    dnoize is offline
    500+ This must be a daytime job
    Join Date
    Nov 2005
    Location
    rotterdam, the Netherlands, Europe
    Posts
    803
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    cant wait to try it mike !

    Stef
    www.boeing737ng.com
    ___________________________
    The Dutch 737 Simulator Project
    Reply With Quote Reply With Quote
  4. 01-07-2009, 07:46 PM #3
    ak49er
    ak49er is offline
    150+ Forum Groupie ak49er's Avatar
    Join Date
    Jan 2007
    Location
    Big Lake, Alaska
    Posts
    281
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Care to let us in on the inner workings so's we can build some too?
    Reply With Quote Reply With Quote
  5. 01-07-2009, 10:00 PM #4
    Matt Olieman
    Matt Olieman is offline
    Executive Vice President, MyCockpit


    Matt Olieman's Avatar
    Join Date
    Oct 2005
    Location
    Ocala, FL USA
    Posts
    2,883
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    That's slick!!!!! Nice job

    Matt Olieman
    Reply With Quote Reply With Quote
  6. 01-08-2009, 10:34 PM #5
    CocnutAir
    CocnutAir is offline
    builder
    Join Date
    Jan 2007
    Location
    Texas
    Posts
    582
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Baie Lekker!!!

    Please share design
    Asseblief.

    Alan.
    Reply With Quote Reply With Quote
  7. 01-09-2009, 10:59 AM #6
    Gallie
    Gallie is offline
    10+ Posting Member
    Join Date
    Dec 2007
    Location
    The Netherlands
    Posts
    20
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Guys,

    Stef has tested the stringpot and it worked perfectly using only 3 out of 10 turns.
    I hope to make more within the next few days. And I will try to make a tutorial so the rest of us can also build them.

    Some more details:
    - It uses a 10Kohm, 10 turn vishay potmeter
    - I used the internals (wheel + spring + string) from a ski pass holder.
    - Shell made from 5 layers of wood
    - Materials costs +/- 16 euro's
    - Time needed to build: about 2 hrs
    - It's the perfect "low budget" solution for people using real throttle quadrants

    I finaly did my part to help out the home cockpit builders community...

    Will post more info/photos when the first production run starts....

    Regards,

    Mike
    Reply With Quote Reply With Quote
