    Work in progress MIP

    Hi

    Just a few pictures of my MIP, all still work in progress, lots still to do.

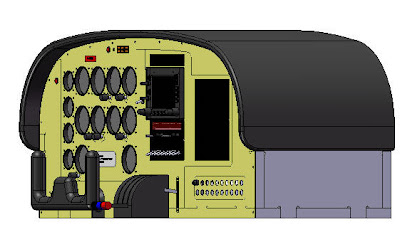

    The basic design in Solidworks.





    Laser Cut 1.5mm steel panel, screwed to CNC routed MDF frame 1" thick for stability.
    Bendy MDF sheets glued and cut to form the cowl.

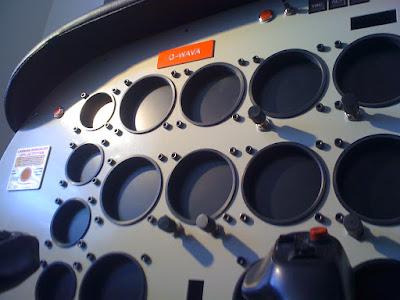

    Assembly of the main parts after powder coating and covering of the cowl.




    Gauge rings turned from acetol plastic to fit encoders between screen.




    Assembly in-situ with the FS PC and the PC to run Project Magenta and SIOC for Open Cockpits cards.




    Project Magenta gauges.

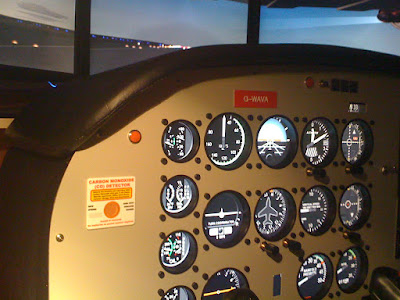

    A quick test flight, none of the pushbuttons yet wired, very immersive though!

    All the best,

    Steve.

  2. #2
    Forum Moderator
    Join Date
    Nov 2008
    Location
    Essex / EGMC
    Posts
    2,104
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Hi Steve.

    Fantastic work on the MIP, typical of your high standards, pure excellence.

    But can you tell me how you import gauges into Project Magenta 'Black Panel', looking to import a squared fuel guahe from one of the other PM IFR Panels, but doesnt know how to import them, would you know......?

    Also how do you configure the HDG bug using encoders, because my encoder takes forever to rotate to the required position, I have to assign my encoder to FAST forward, and SLOW backwards just to get required results.....? Do you know a solution?

    Kind Regards,

    Alex Jarratt,
    Last edited by AlexJ; 02-14-2010 at 03:18 PM.
    Building An Airbus In My Garage!

  3. #3
    75+ Posting Member Steve1970's Avatar
    Join Date
    Oct 2009
    Location
    uk
    Posts
    134
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Hi Alex

    to be honest I don't have a clue, I only use the standard gauges. Would be interested to know if importing gauges was possible. Never really considered that.

    All the best,

    Steve.

  4. #4
    10+ Posting Member
    Join Date
    Nov 2009
    Location
    Ecosse
    Posts
    22
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Very impressive work Steve. The finish on the MIP is beautiful - you certainly have an eye for detail.
    This is the sort of set-up to which I aspire.

    Your posts on the GarSim530 and the radio stack modules are an inspiration and a source of constant reference.
    I look forward to seeing the finished article.

    Best wishes

    Colin

  5. #5
    500+ This must be a daytime job Ronson2k9's Avatar
    Join Date
    Apr 2009
    Location
    London, ON Canada
    Posts
    528
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Great job. Very impressive. I'd rank it high on the drool meter.
    My apartment is still a bit of mess but I've gotta get going on mine soon.
    I really miss flying.

    You wouldn't have any shots of the frame for the MIP would you. Looks pretty clean.

    Keep up the great work and the updates coming.
    Up Up and away in my beautiful my beautiful - Amphibian

  6. #6
    150+ Forum Groupie flatlandpilot's Avatar
    Join Date
    May 2009
    Location
    Netherlands, Zwolle
    Posts
    152
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    great work, I like the powder coated plate with the MDF behind.
    quite a job but it really pays off.
    When once you have tasted flight,
    you will forever walk the earth with your eyes turned skyward

  7. #7
    Forum Moderator
    Join Date
    Nov 2008
    Location
    Essex / EGMC
    Posts
    2,104
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Your MIP reminds me of a cross between a Cessna 172 and a PA28 and a Generic Sim....all roled into one.....very innovative design!
    Building An Airbus In My Garage!

  8. #8
    150+ Forum Groupie Kerbo's Avatar
    Join Date
    May 2008
    Location
    St Louis, MO, USA
    Posts
    152
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Very nice work Steve, thanks for sharing. I need some warm weather to get working again on my MIP in the garage.
    Kerbo on YouTube or Twitch
    github.com/wriley

  9. #9
    10+ Posting Member
    Join Date
    Dec 2007
    Location
    Italy
    Posts
    14
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Hi Steve,

    what a fantastic cockpit..!

    That is the idea I'm considering since last year, but my consruction is going very slow. Not yet MIP (alluminium?.. wood...?), for the moment I'm getting practice with encoder programming in sioc, since, like you, I wuold like to have a cockpit with lcd projected gauges, but also the possibility to manually adjust the hdg, crs and so on....
    I'will try also the way of handmade raidios, with Opencockpit display card and 7 segment displays..

    Wich type of monitor all the gauges stay behind?

    Btw, excuse if I permit,... but the is the possibility of sharing your MIP drawings..?


    thankng in advance

    Marco, Italy

  10. #10
    Super Moderator
    Join Date
    May 2006
    Location
    Texas
    Posts
    654
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Work in progress MIP

    Great stuff and super work!
