737-800 Build in Oslo

is very profesional jejeje

Looking great Nax. Practicing instrument flying under the hood judging by the look of the curtain. ;)

JWS

hehe... yes, we do it the old fashion way even in a NG :D

Experience have learned me to cover up before sawing in mdf.

Do you heave build the MIP self?

Quote:

---

Originally Posted by JWS

What do you mean, NAX?:???:

JWS

---

Norwegian air shuttle (Norwegian Airline) they fly thr 737-800 ;)

/Tim

I've finally come around to actually build my Simworld OH. Been lying around for over a year now...
https://lh4.googleusercontent.com/_6...0/IMG_0014.JPG

Tried different frames, but the original 737-300 just didn't fit and an aluframe I made didn't do the trick eighter so I'm back to the good old wood :D
https://lh4.googleusercontent.com/_6...9042011453.jpg
.
https://lh3.googleusercontent.com/_6...1042011462.jpg

I will make the gauges as a DIY project and have bought a Servo card from OC and printed the plates on to plastic foil. The foil will be glued to a white plexiglass, the type they use in billboards for backlighting.
Had a few servos (HS-55) lying from a crashed RC plane, so I will start with them. Hopefully it will work and I'll document the making later.

Hi Nax,

I would like to know how you made the coupling of the steering column and the crossbar. Could you place some pictures or another movie maybe? I just got two columns and wheels myself and ran into the problem you already solved : )

thanks in advance,

dion

Seem to remember there's about 2000 soldering points just in the FWD overhead;)

But it's part of the hobby! Good luck, I'm sure it will turn out awesome like everything else you have accomplished.. :lol:

Hi dion
The assembly is now mounted in cockpit, so new pics will not be taken before I buy a new house or get in serious problems with the yokes, but I hope and think they will hold.
I'll post the pics I have, but I have drawings where you can get into the smallest details. Download Sketchup from google and send me your email address in PM and I will send them to you.

EDIT: Here is a link to the photoalbum with all the pics. There is also some screenies from sketchup.
https://picasaweb.google.com/108214606934053540391/SIM#
Hope it helps

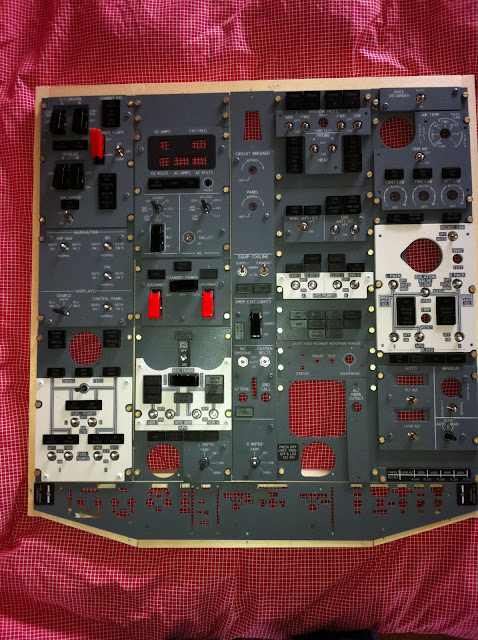

Starting to look like a overhead now.
Have to paint some crack between some of the panels and all the "DZUS" screws, but think they will be OK in the end.
Need a few pushbuttons, pots and switches before I start the BIG task of wireing it up.

https://lh6.googleusercontent.com/_6...0/IMG_0080.JPG
