A Simple Enhancement to my cockpit with PMDG and a 737ng poster

Great Job! Very innovative.

Thanks for all your comments,

Matt, Yes may need to change the thread title soon lol

@ Sean, ahh the penny drops on me, Thanks for your help that day!!
Basically the top plates no longer are pre drilled so i drilled myself after confirming with robert and stef at fly engravity.
Very pleased with the panel although its a bit lonely on its own, it may soon have a friend alongside it lol

Regards

Steve

A few pictures of how yoke column was made:)

Materials = 1 x 3" soil pipe cut to required length
2 x 3" couplings (push fit to solvent weld)
5 x L brackets
A few wood screws and some nuts and bolts

The base is 18mm mdf with four spacers in each corner to lift it off floor a few mm for yoke wire to pass under
http://i660.photobucket.com/albums/u...t/IMG_4374.jpg

Attach one coupling to the base with wood screws and the nuts and bolts
http://i660.photobucket.com/albums/u...t/IMG_4366.jpg

For the top I didnt want to open my ch yoke and drill through it
voiding warrenty etc so i drew round the yoke onto an 18mm piece of mdf,cut this and repeated
and screwed these togetherleaving me with a 36mm yoke shaped base.
http://i660.photobucket.com/albums/u...t/IMG_4372.jpg

Side view
http://i660.photobucket.com/albums/u...t/IMG_4373.jpg

Then i attached the other coupling to this
http://i660.photobucket.com/albums/u...t/IMG_4368.jpg

Drill a hole through the back of the top coupling and a hole through the mdf base to hide the wire,
cut pipe to required length,paint ral7011, Job done:D

Regards

Steve

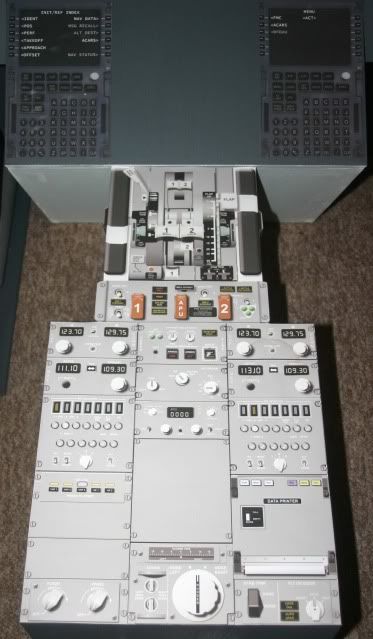

FMC Bay, throttle quadrant and radio stack
http://i660.photobucket.com/albums/u...t/IMG_4377.jpg

Throttles and radio stack are another poster laying around and make a
superb beer table en-route ;)

http://i660.photobucket.com/albums/u...t/IMG_4379.jpg

Current set up as of today
http://i660.photobucket.com/albums/u...t/IMG_4380.jpg

Engravity centre panel and mcp bracket are in Norwich but not being delivered till Monday:cry:
I will be setting up another pc then along with fsxpand i think,
Thanks for looking

Steve

Engravity centre panel now in,mcp and efis where they should be and fsxpand for the eicas.
http://i660.photobucket.com/albums/u...t/IMG_4397.jpg

http://i660.photobucket.com/albums/u...t/IMG_4395.jpg

http://i660.photobucket.com/albums/u...t/IMG_4394.jpg

I only wish I could do them the justice they deserve with a camera:roll:

Thanks to Sean & Ian for answering my questions over the past to get me here now:D

Regards

Steve

Looking great Steve. The photo's are really good, like the lighting in the last one.

Love the FS Mars scenery too!

Thanks Sean,

The scenery lol all i had done was set up at EGLL 09L at dusk, fired her up and
started to take pics, Passion in the sky tonight, not for me the wifes gone to bed lol

Regards

Steve

Quote:

---

Originally Posted by BishBash

the wifes gone to bed lol

---

What do you expect? Get that F/O panel ASAP. Then she's got no excuse!

Quote:

---

Originally Posted by Sean Nixon

What do you expect? Get that F/O panel ASAP. Then she's got no excuse!

---

:);) Good thinking but im after fmc next me thinks

Looks fantastic Steve. I now you're enjoying every minute of it. :)
