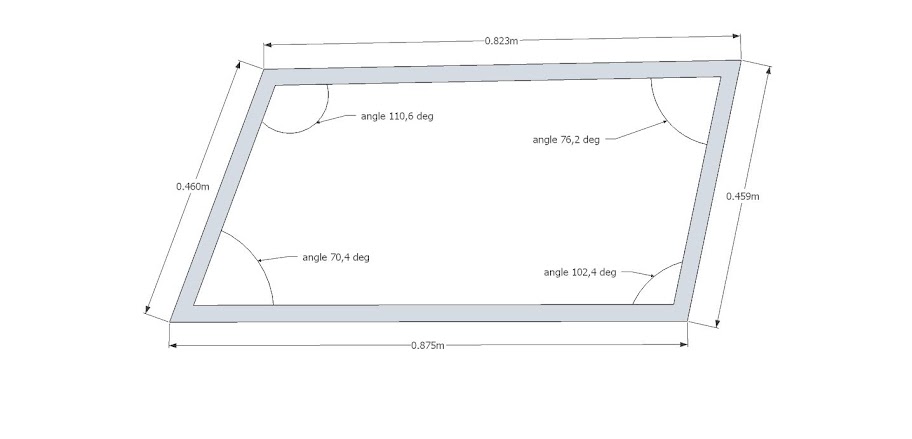

Made these out of mdf from this drawing.
https://lh3.googleusercontent.com/-5...wind_2D_wm.jpg
After glueing and some cuting, it turned out ok.
https://lh3.googleusercontent.com/-X...0/IMG_0656.jpg
It's now BETA installed in the cockpit, and did wonders. maybe not to easy to show here, but here it goes
https://lh6.googleusercontent.com/-n...0/IMG_0667.jpg
Just a little addition to the pit, F/O CDU.
You can also spot the terrainradar and VSD on the displays, but plane is situated on RW.
https://lh5.googleusercontent.com/-Z...0/IMG_0698.jpg
Looking good Nax...
Warren
hi Nax,
Your cockpit really is so cool : ) I get a lot of inspiration out of it, thanks man!
dion
Thanks for the kind words guys.
Some work done in the woodshop department this weekend. A lot of soledering left before it's finished, but it does look good.
Attachment 5732
It's been a year almost since my sim was placed in the warehouse in wait for the new house.
I have collected and buing stuff the whole time, so I'm VERY eager to get V3.0 rolling.
In good old fashion I have to make some changes to the floor plan to get the right amount of space for the sim and the workshop in the cabin department (new addition), and this time I have enough space for it all. Got pretty crowded in my last room :D
(De)Construction will start October 15th.
For new viewers I'm sorry for all the pictures gone missing. This was due to some mixup in my google account and a lot of pics got deleted when trying to merge accounts. Yepp, I messed it up big time.
Many pics to come the next year from now I hope.
How the time flies... my sim is not, but soon again, it will be brought to life.
Here is a little update stitched togeter from other forums.
new simplifyed design for the tillermechanism I've been working on. Now it's not nessesary to bend the plates. (as you understand, this have been under development)
https://lh6.googleusercontent.com/-K...mekanisme4.jpg
https://lh5.googleusercontent.com/-u...mekanisme4.jpg
Small steps beeing made each week now, and plan to take a few big ones now that I will have 4 weeks vacation...
Mip is finally all wired up with new backlighting and new sun screen film on monitors. Yokes is next thing in, but await new custom made nylon blocks to attach yokes to the floor. Been assembling the aft oh during waiting for theese.
Some new items awaiting imlementation:
https://lh4.googleusercontent.com/--...ps131017df.jpg
https://lh3.googleusercontent.com/-L...ps376bde01.jpg
triangular panel in front of OH:
https://lh4.googleusercontent.com/GB...=w1259-h550-no
tiller:
https://lh3.googleusercontent.com/-3...o/IMG_0502.JPG
Air vents:
https://lh5.googleusercontent.com/-e...o/IMG_1107.JPG
This weeks status:
https://lh4.googleusercontent.com/-Z...o/IMG_2339.JPG
https://lh6.googleusercontent.com/-_...o/IMG_2338.JPG
Pleased with the back lighting. Here is a few samle pics:
https://lh4.googleusercontent.com/-t...o/IMG_2295.JPG
https://lh3.googleusercontent.com/-c...o/IMG_2296.JPG
https://lh4.googleusercontent.com/-J...o/IMG_2298.JPG
Yokes installed. Here is the mechanics:
https://lh5.googleusercontent.com/-1...no/IMAGE_4.jpg
nevermind the mess
https://lh6.googleusercontent.com/-j...no/IMAGE_8.jpg
Pot for aileron:
The wire without pot:
http://lh6.googleusercontent.com/-o4...o/IMAGE_12.jpg

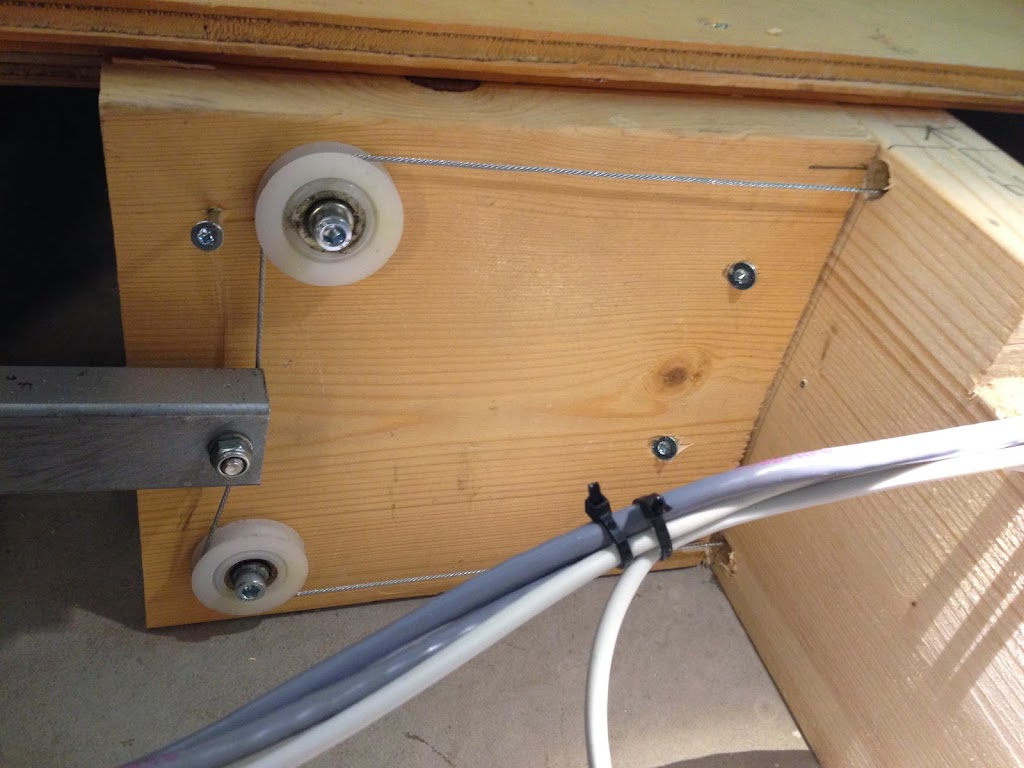

Bracket with pot and glide wheel:
http://lh3.googleusercontent.com/-HX...o/IMAGE_13.jpg
Mounted:
http://lh6.googleusercontent.com/-1Q...o/IMAGE_15.jpg
http://lh4.googleusercontent.com/-O3...o/IMAGE_18.jpg

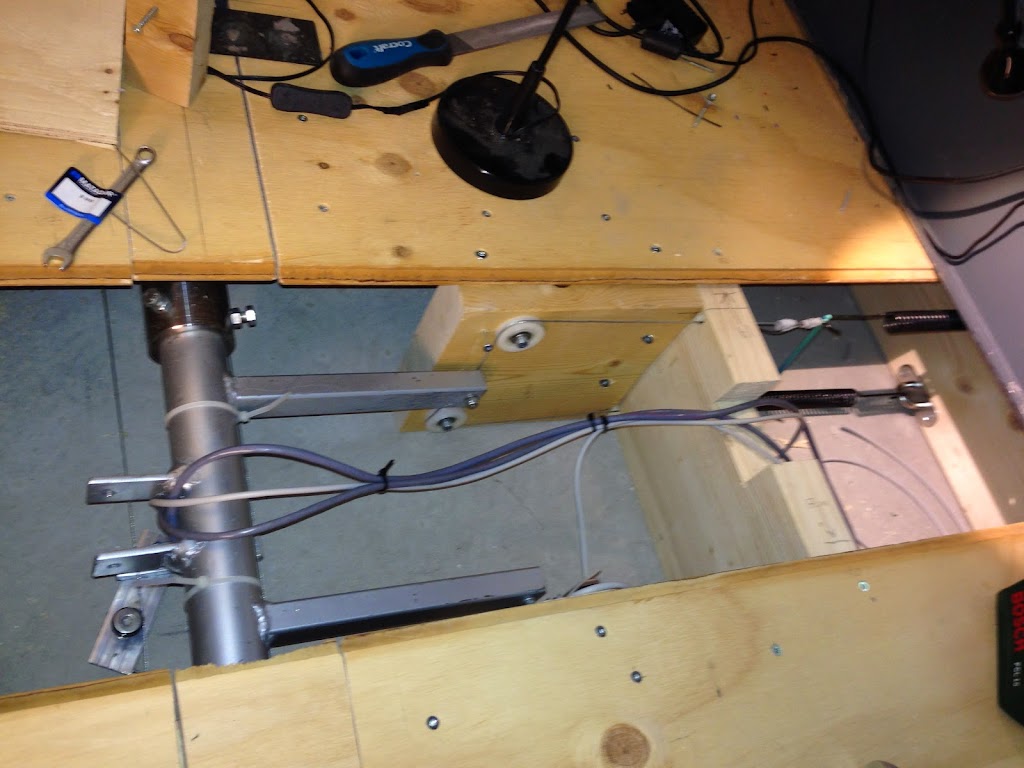

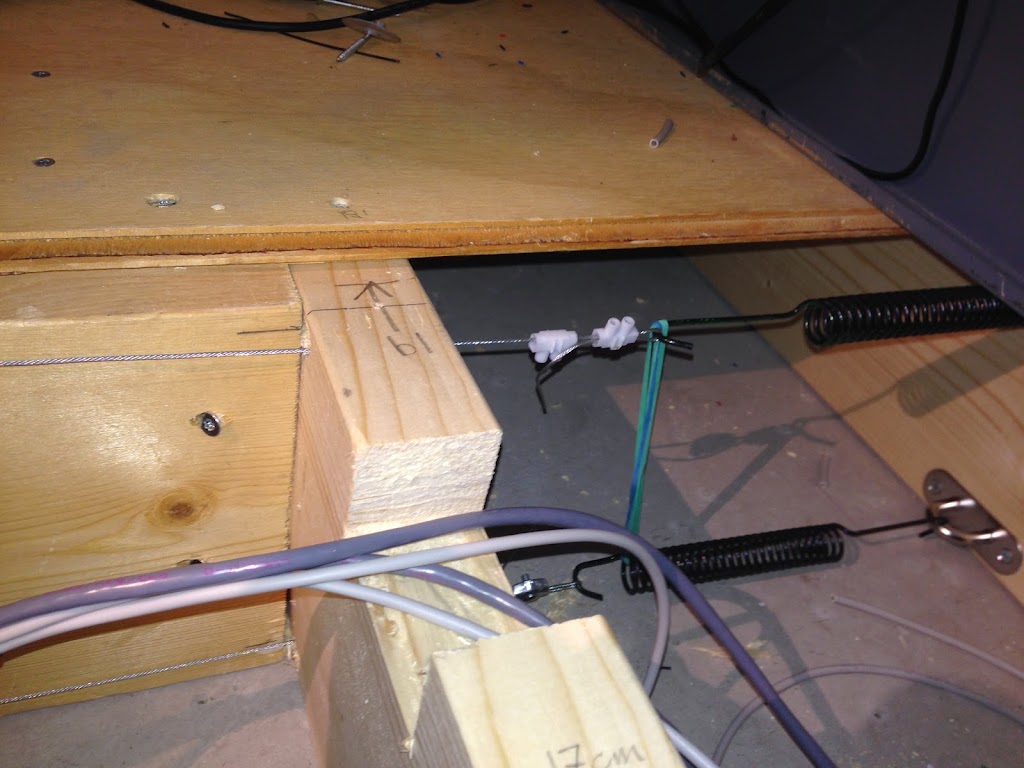

Rubber bads will pick up the slack when one spring is fully stretched and the other is not.
http://lh5.googleusercontent.com/-Ic...o/IMAGE_19.jpg
http://lh4.googleusercontent.com/-QD...o/IMAGE_20.jpg
Aft oh is now ready. Also added the EEC buttons after this pic waqs taken:
https://lh3.googleusercontent.com/-_...o/IMAGE_22.jpg
as of today:
http://lh6.googleusercontent.com/-jM...o/IMAGE_28.jpg
Feel free to ask any questions
