My hybrid cockpit build

I finished a new export set of the numbered parts here: http://www.diy-cockpits.org/files/sh...ts_10Oct10.zip

These differ from the other set in that they're saved as an earlier DXF format version and I've made notes on the ones that require any bevel cuts.

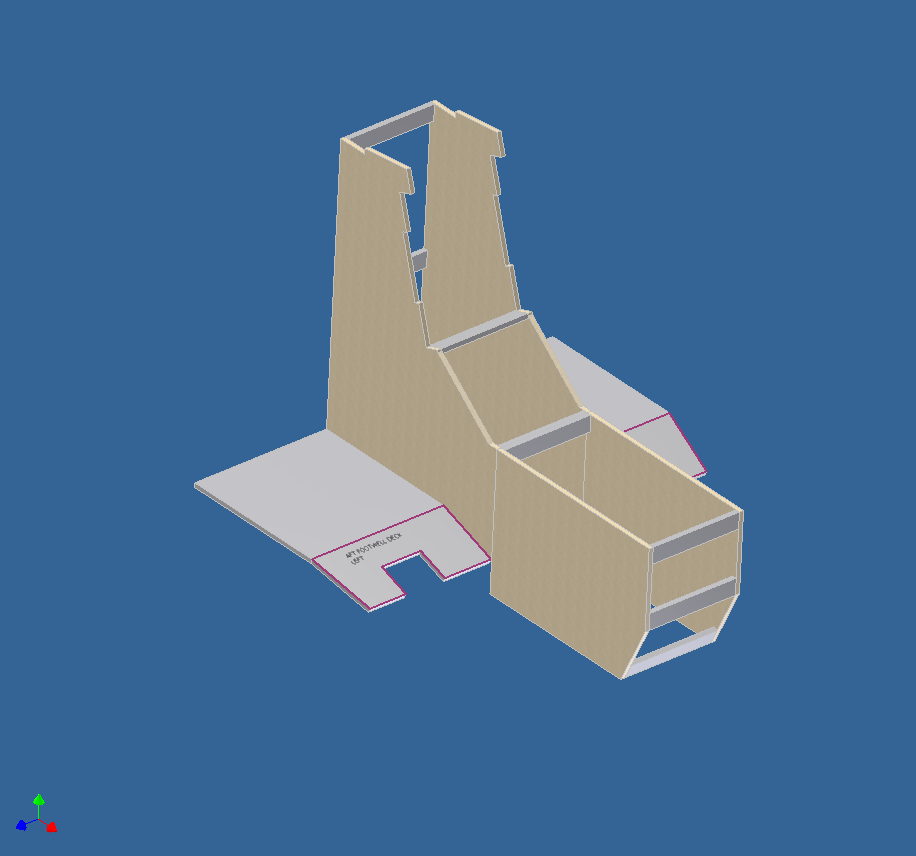

I'm still tweaking the model for the center console - http://www.diy-cockpits.org/images/c...nsole_test.png

Ricardo, can you tell me the make & model of the 17" and 15" displays you're using as well as their "raw" (un-cased) dimensions?

I've got the top & bottom rails as well as the stiles for the instrument panel frame done, but I'd like to make sure things fit before I finish those.

Should I start a separate thread for this to keep from cluttering your project updates?

tnx.

g.

Quote:

---

Originally Posted by geneb

I finished a new export set of the numbered parts here: http://www.diy-cockpits.org/files/sh...ts_10Oct10.zip

These differ from the other set in that they're saved as an earlier DXF format version and I've made notes on the ones that require any bevel cuts.

I'm still tweaking the model for the center console - http://www.diy-cockpits.org/images/c...nsole_test.png

Ricardo, can you tell me the make & model of the 17" and 15" displays you're using as well as their "raw" (un-cased) dimensions?

I've got the top & bottom rails as well as the stiles for the instrument panel frame done, but I'd like to make sure things fit before I finish those.

Should I start a separate thread for this to keep from cluttering your project updates?

tnx.

g.

---

Hello,

Had a little problem on my left eye and been offline for a bit, i am using 2x 17" LG Flatron L1734S not stripped of plastic frame for left and right, and 1x old 17" lg lcd that i stripped but do not know the model. All are 4:3 lcd's.

The monitor frame is made to order in my case, it has to be diferent for other hardware.

Thanks for the info - I hope your eye gets better soon!

g.

May i join the other member in saying massive thanks for sharing your project , the word im looking for is awesome and quailty craftmanship Very very nice Thanks My Man is an umderstatment :-)

Very nice setup. Looking forward to see more pics!!!!
// Per

Update #12

Glareshield taking shape, some minor trim added and first coat of gray paint on, still 5 or 6 to go.

http://img268.imageshack.us/img268/651/dsc6484a.jpg
http://img256.imageshack.us/img256/8892/dsc6493.jpg
http://img27.imageshack.us/img27/6339/dsc6497.jpg
http://img571.imageshack.us/img571/742/dsc6498l.jpg

That looks awesome and inspirational. Keep up the great work.

Cheers
Ron
