    modding rotary switches

    Hopefully someone has a trick that will make this easy :
    I'm trying to mod some rotary switches so they will take a double shaft and for the life of me I can't do it. I have managed to drill a hole exactly in the middle but then you have to cut the spring in two parts and then shorten them so the little balls will fit again at both sides of the new shaft but they have a life of their own. It''s simply not possible to put two springs and two balls in at the same time
    I've been trying this for three months now and wasted 5 switches or so.
    I can't finish my EFIS and brake panel without these horrible switches.
    So how do people manage this or is there someone out there whom I could pay to make me a couple of these life wreckers?

    frustrated

    Martin

  2. #2
    300+ Forum Addict



    Join Date
    Mar 2009
    Location
    Body in Netherlands, Hart in the Fairest Cape!
    Posts
    402
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

    I know the feeling , ... I have to take a crack at making mine soon. I bought some alimunium U profile in Bussem which I plan to use to hold the two switches in ... I should be getting a drill press soon. My problem is not the springs, . it's drilling the holes.

  3. #3
    300+ Forum Addict


    tiburon's Avatar
    Join Date
    May 2007
    Location
    Amsterdam
    Posts
    353
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

    Actually, once you have the drill press, it's not that hard. Take the switch apart, remove the spring and balls, shorten the shaft so it doesn't stick out anymore and put it back together. Clamp a piece of wood under the drill press and drill a hole the size of the collar (10 mm) of the switch (the part you stick through a panel). Put the switch in the hole with the collar facing down. Now without moving the position fit a 6 mm drill and you can drill a hole exactly in the middle.

  4. #4
    MyCockpit Support Staff


    Westozy's Avatar
    Join Date
    Nov 2005
    Location
    Perth, Western Australia
    Posts
    1,488
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

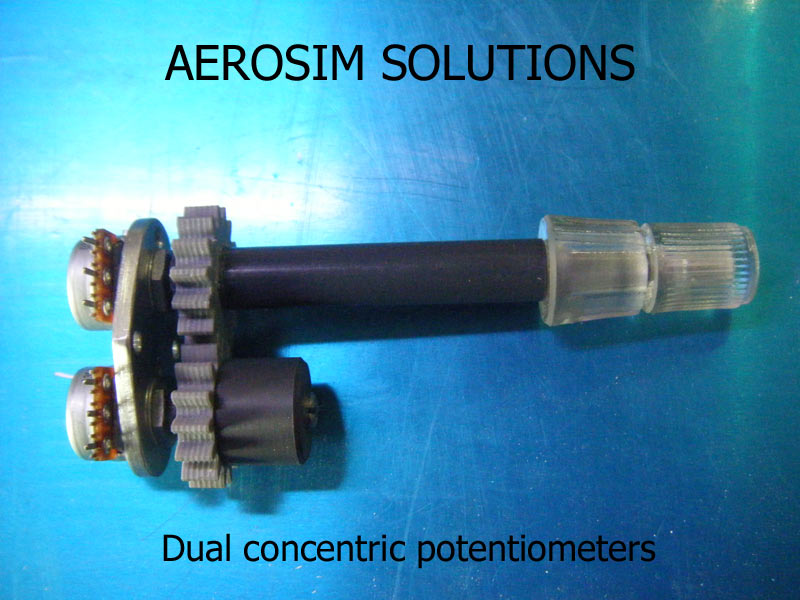

    Hi Martin, I have a customer who is building his own B747 MCP and EFIS units. He requested some dual concentric potentiometers and also some dual concentric rotary switches. Another one will have a rotary encoder in the centre and a rotary switch on the outer knob (for heading & bank angle). I have only made the dual pots so far but the others will have the same construction method which is a mounting plate and a couple of small gears.


    Cheers Gwyn (Westozy)
    Aerosim Solutions

    737NG using Prosim737, Immersive Calibration Pro, Aerosim Solutions motorized TQ & cockpit hardware, CP Flight MCP & FDS SYS1X, SYS2X & SYS4X, FDS PRO FMCs, AFDS units & Glarewings, Matrix Orbital ELEC display, Pokeys Landing & Cruise alt display, Buttkicker Gamers, 3 x BenqMW811ST projectors with a Matrox Th2Go
    http://www.aerosimsolutions.com.au
    Supporter of MyCockpit.org, please join me in donating!!!

  5. #5
    300+ Forum Addict


    tiburon's Avatar
    Join Date
    May 2007
    Location
    Amsterdam
    Posts
    353
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

    Thanks Gwyn. I was aware of your solution but I don't think it is going to work for me. I'm using the Hispapanels circuit boards and there's just not enough room in the EFIS to incorporate your design. Also it doesn't look as if the shafts are 6 and 4 mm, are they ? I couldn't use my knobs.
    Also the lower two rotary switches on the EFIS just have a hole in the middle to be able to connect to the push button switch under it.
    Now If you could make some rotary switches with just a hollow 6 mm shaft through them I would be your first customer

    regards

    martin

  6. #6
    Our new friend needs to reach 10 posts to get to the next flight level



    Join Date
    Jan 2011
    Location
    Miami, USA
    Posts
    6
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

    Hi Martin, I have the same problem. Manolo made 10 dual concentric encoders that fits his PCB's. The price was reasonable? The dual concentric knobs are now my next problem, specially the ones with push botton in the center. Simparts.de is willing to make the kobs for me but the price is according to the customized request. I am still shopping for a solution
    Cheers
    Luis

  7. #7
    300+ Forum Addict


    tiburon's Avatar
    Join Date
    May 2007
    Location
    Amsterdam
    Posts
    353
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

    Luis, I persevered and after ruining about 6 of them I finally got the hang of it. I'm now able to make them with reasonable accuracy. I also made the two 60 degree indexing switches for the EFIS. Simparts advertizes the knobs for 45 euro's, that's not too bad, is it ? I wouldn't know another source.

    regards

    Martin

  8. #8
    500+ This must be a daytime job mpl330's Avatar
    Join Date
    Mar 2007
    Location
    Yorkshire - UK
    Posts
    513
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

    Martin,

    What's the 'trick' to putting them back together then?
    Got a few to do myself and have the shafts drilled ok but not cut the springs and put the ball bearings back in yet...

    Cheers
    Mike

  9. #9
    300+ Forum Addict


    tiburon's Avatar
    Join Date
    May 2007
    Location
    Amsterdam
    Posts
    353
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches

    Ok, Mike, I'll try to explain (not my first language this)
    Cut the springs so they are a little under the surface of the rotor part of the switch (where you put the new shaft in). I use a tiny amount of super glue so they won't fall out again. Put the rotor back in the top (black?) part of the switch. The rotor has cut-outs where the balls go and on one side of the top part there's a little gully. Position the rotor so one of the cut-outs is opposite the gully. Now lift the rotor gently and because you cut the springs a bit under the surface of the rotorpart you can balance a ball on the spring. Now push it in (I use a chopstick) at the same time pulling down on the shaft. That's one. Keep a downward pressure on the shaft at all times. The other one is easier actually because you can just roll it down the little gully. Lift the rotor a tiny bit so the other ball won't fall out, use the chopstick trick and hey presto, they're in.
    Now I discovered it's very important that the rotor part has some sort of upward pressure applied to it (towards the top of the switch)
    That is because you took out the bottom part of the rotor which in it's original state was resting on the bottom of the switch and the rotor is too low now in the housing so the stop in the upper part doesn't stop the rotor anymore. I hope you understand what I'm trying to explain.
    To overcome this problem I put a little spring on the shaft at the bottom. Works perfectly.
    Let me know how you get on.

    cheers

    Martin

  10. Thanks mpl330 thanked for this post
  11. #10
    300+ Forum Addict


    tiburon's Avatar
    Join Date
    May 2007
    Location
    Amsterdam
    Posts
    353
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: modding rotary switches


    Could you tell me how much that would be?
