    Project Magenta Cessna 172 Replica Production

    Hi all,

    Some may be interested in the methods and parts used in my Cessna project so over the next few week I will post lots of pictures, videos and info about it here as it happens. The interesting thing about this project is that I am attempting to have most of the parts manufacturable so if anyone see something they like then gimme a shout.

    Chris @ Essex UK

  2. #2
    150+ Forum Groupie cjellwood's Avatar
    Join Date
    Aug 2009
    Location
    Southend-on-Sea, United Kingdom
    Posts
    162
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    Starting with the largest most expensive part, the glareshield mould as shown below took a couple of weeks to form by the pro's at my local ABS vacuum forming company. The reason for producing a custom glareshield is due to the current availability being too expensive and low quality. A few modifications were made to the traditional design to add strength and style which has worked in my opinion. It is very rigid and is very nice to look at

    This is the tool made from some kind of resin (hand made!)


    And here is the first ABS form to arrive from the vacuum forming machine today. Not a very good pic sorry and has a foam panel inserted for perspective.


    Chris

  3. #3
    Warren fsaviator's Avatar
    Join Date
    Dec 2008
    Location
    Dupont, WA
    Posts
    506
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    Nice... is it cost effective?

  4. #4
    150+ Forum Groupie cjellwood's Avatar
    Join Date
    Aug 2009
    Location
    Southend-on-Sea, United Kingdom
    Posts
    162
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    Edit:

    This glareshield is now available from www.FlightIllusion.com . There does not seem to be much talk about their products in this forum so I will use this thread to evaluate and report on their gauges etc as they arrive. Half of my cockpit is made up of www.homesim.de products too solots to report on here.

    Chris

  5. #5
    150+ Forum Groupie cjellwood's Avatar
    Join Date
    Aug 2009
    Location
    Southend-on-Sea, United Kingdom
    Posts
    162
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    Some more pics now it has been trimmed http://www.leons-world.com/glareshield/

    Chris

  6. Thanks jackwall, AK Mongo thanked for this post
  7. #6
    150+ Forum Groupie cjellwood's Avatar
    Join Date
    Aug 2009
    Location
    Southend-on-Sea, United Kingdom
    Posts
    162
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    Now onto what is probably the most difficult part of the project whic is the control knobs.

    First they are designed in Pro Engineer and the assembly is checked for correct mating etc.





    The first port of call is to have each part machined in aluminium then anodised which will be very satisfying but predictably expensive! This will be done over the next couple of weeks so will post at each stage.

    There was only pictures to go on when modelling these parts and my modelling skills are not much so fingers crossed.

    Chris

  8. Thanks AlexJ thanked for this post
  9. #7
    Forum Moderator
    Join Date
    Nov 2008
    Location
    Essex / EGMC
    Posts
    2,104
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

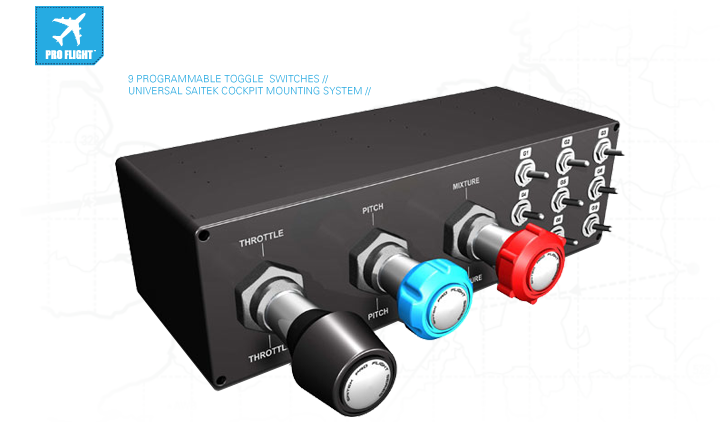

    Alternatively, you can just buy one of these panels when they come out, My guess is they will sell around the 100 mark:



    You also have nine toggles which you can take out of the casing and use somewhere else, Ie. Switch panel!
    Building An Airbus In My Garage!

  10. #8
    150+ Forum Groupie cjellwood's Avatar
    Join Date
    Aug 2009
    Location
    Southend-on-Sea, United Kingdom
    Posts
    162
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    I wondered how long it would be before Saitek brought out something like that for the Cessna, but I hope they re-arrange the mix and prop knob because isn't the red knob supposed to be in the centre?

  11. #9
    Forum Moderator
    Join Date
    Nov 2008
    Location
    Essex / EGMC
    Posts
    2,104
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    Yes you are correct, it goes, black, red then blue, mainly larger GA aircraft such as the Cessna 182 would need prop pitch. I must admit, regarding the sequence 'yes' they have got it wrong'...but what's to stop you unscrewing the knobs and swapping them round, maybe this is a feature. They have totally killed the design by adding 9 toggles in such an odd looking grid, but they have certainly got the vernier controls right, although the actual black throttle knob looks a bit odd, the white raised label on the black knob should be inverted as to what it is, but altogether it looks 'very' Cessna and I'm liking the product overall!
    Building An Airbus In My Garage!

  12. #10
    25+ Posting Member smendlik's Avatar
    Join Date
    Oct 2009
    Location
    Broadview Hts, Oh
    Posts
    73
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Cessna 172 Replica Production

    Did Cessna change something? I'm looking at a poster of a 182 interior and it's black, blue, red (left to right). Here's a link to Cessna's web page showing the same sequence

    Last edited by Matt Olieman; 10-24-2010 at 02:14 PM.
