    Red face Mounting Toggle switch to home made panel

    Hi Guys,

    Dumb question..but how are you mounting toggle switches to a panel? Im just ordered a BU0836X card and looking at toggle switches. When you get a toggle switch do you have to buy a mounting holder as well?

    Cheers Chris

  2. #2
    MyCockpit Support Staff


    Westozy's Avatar
    Join Date
    Nov 2005
    Location
    Perth, Western Australia
    Posts
    1,487
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Mounting Toggle switch to home made panel

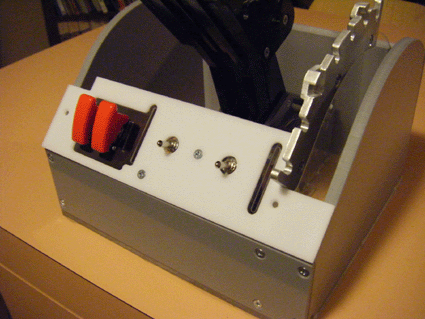

    Hi Chris, toggle switches usually come with two nuts so they can be mounted in a drilled hole in a panel. This picture is of a B777 TQ that I am making at the moment, the backlight panel isn't painted or engraved at the moment but in the pic you can just see a 1.5mm clear acrylic piece that is the back up panel. The toggle switches mount to this backing panel and the backlight panel sits over the top of it. If you are making panels from plastics it is better to grind away the plastic with a Dremel or similar tool rather than using a drill bit which will break the plastic nine times out of ten!



    Cheers Gwyn
