    Announcing new product! Yoke base pivot

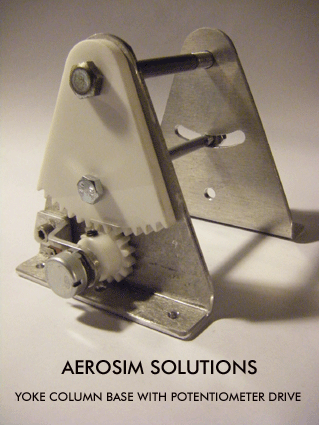

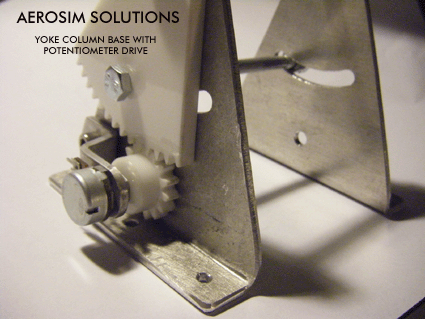

    Hi all, here is the prototype of my latest product! It is a base mount for Boeing type control columns. Any diameter of column can be attached to it just by drilling two holes through the column tube. The prototype has 50 degress of motion and the gear ratio is 5:1 so it rotates the 10Kohm potentiometer 250 degrees. The pitch angle can be altered by request as it just means a slight alteration to the CNC file. I still have another minor alteration to do to improve the pot mount but basically this is the unit. AUD$125 plus postage to solve the issue of pitch transmission!




    Cheers, Gwyn
