    Dimensions for Boeing 757 Overhead Panel?

    Hi everyone,

    As per the title, does anyone know where I can obtain these dimensions?

  2. #2
    150+ Forum Groupie
    Join Date
    Sep 2006
    Location
    Netherlands
    Posts
    171
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Dimensions for Boeing 757 Overhead Panel?

    Hi Jack,

    757 Overhead at a 747 flyer with a 737 transponder .....

    Yes you can calculate this dimensions easily yourself !

    In this tutorial are the panel dimensions:
    http://www.mycockpit.org/forums/cont...sel-Oosten-s-: Panel-Building-Focussed-On-Dimensions

    A 757 overhead has as you know 5 colums, so the width is 5 times a panel width + 4 times some air (see pics on e.g. airliners.net or jetphotos.net).
    You know alle the separate panels heigths from these photo's Ever time x times 3/8 inch per panel, so again with the directions in the tutorial the total total height can easily calculated.

    In general is better to calculate the overal dimensions after investigating the sub-components from with it build up !
    If you take a "general" dimension (nearly always not fully accurate), the chance is nearly 100 % that in a later stage your panels will not fit in the build outer frame !

    Hope this helps,

    Hessel Oosten
    767 Level-D

  3. #3
    75+ Posting Member ran56's Avatar
    Join Date
    May 2008
    Location
    Israel
    Posts
    88
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Dimensions for Boeing 757 Overhead Panel?

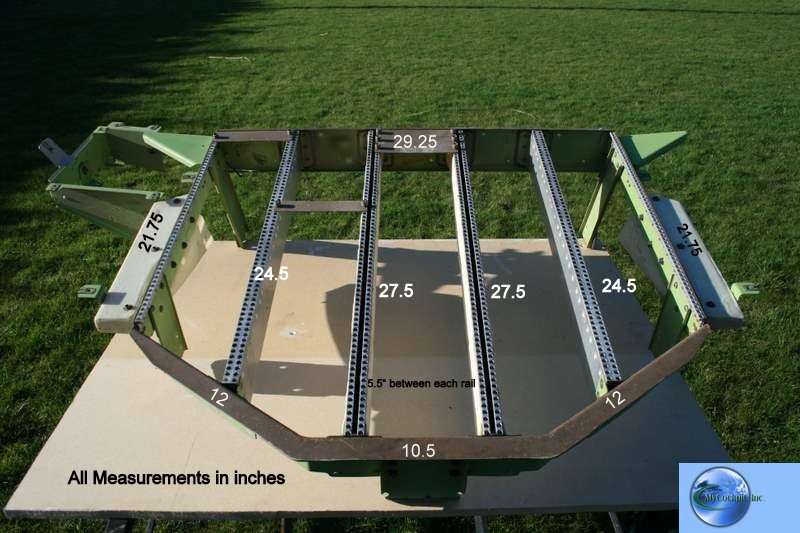

    This pic might be of help


    Ran Finkels
    Former B763 Builder - FS9 Simvionics. LDS, FDS OC etc.

  4. #4
    500+ This must be a daytime job Boeing 747 Flyer's Avatar
    Join Date
    Nov 2009
    Location
    England
    Posts
    771
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Dimensions for Boeing 757 Overhead Panel?

    Thanks alot guys! I know my cockpit sounds a bit strange, (737/747/757).

    Basically, I wish to start with the first column (IRS, Hydraulic Panel, etc).

    That photo is of great help, and also your calculations are very much appreciated Hessel
