    Pictures of my curved screen setup

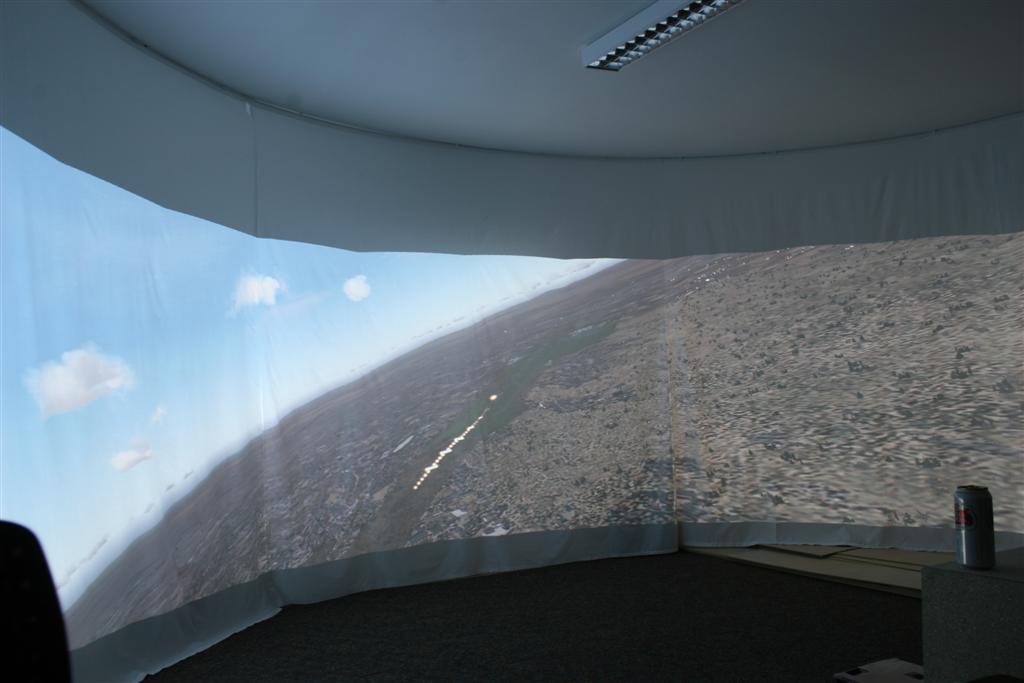

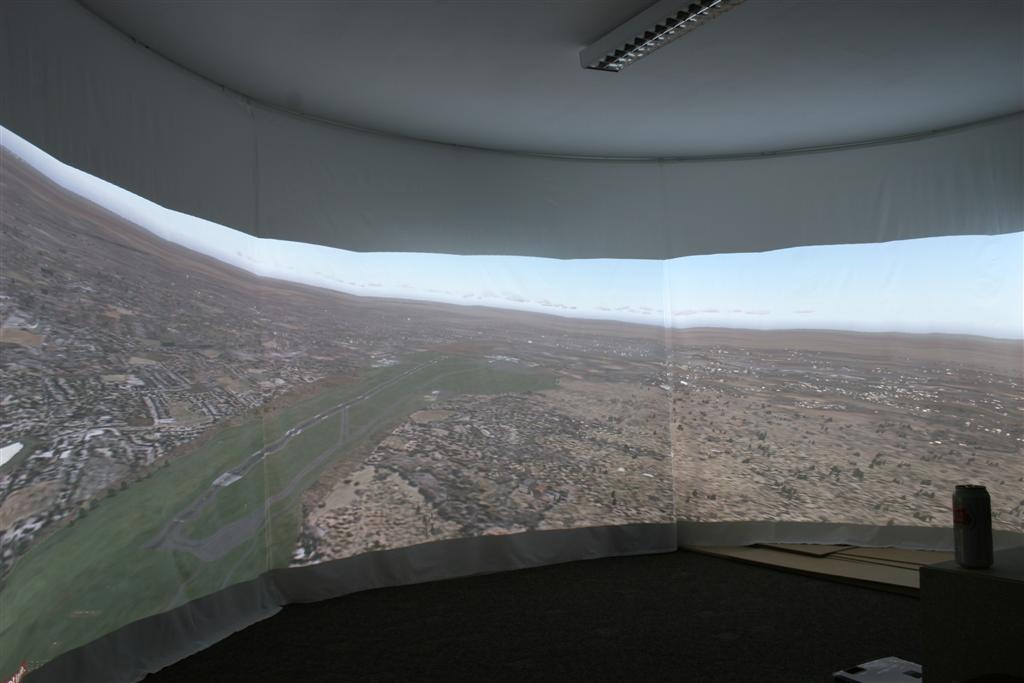

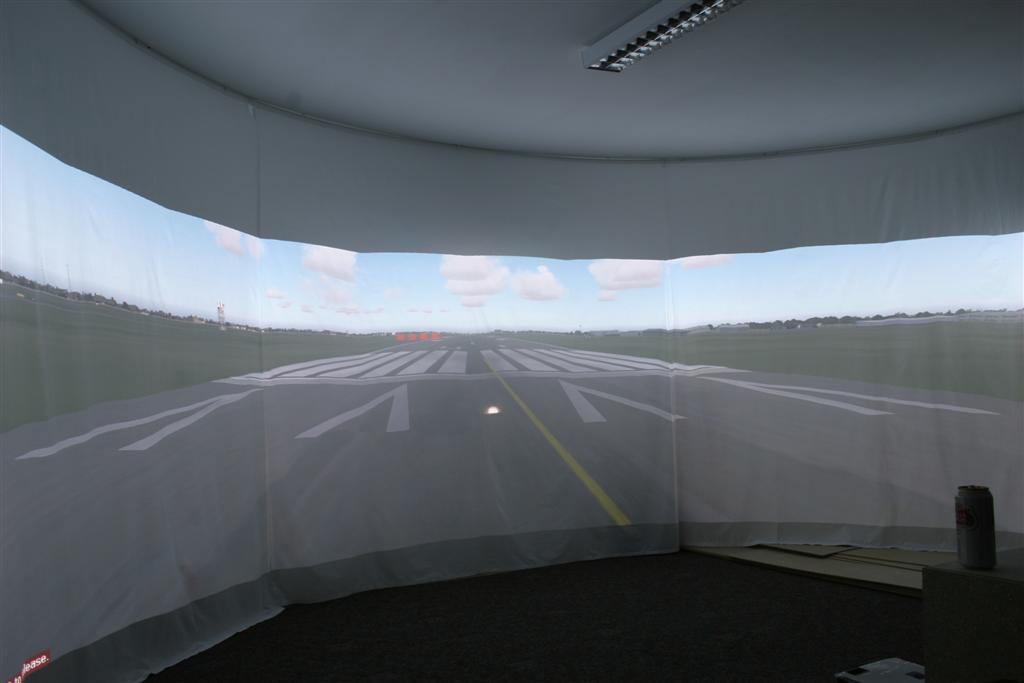

    I've had a few requests for photo's of my curved screen, so here they are.

    I didn't want to construct a 'proper' curved screen straight away, as I was unsure on size, curvature, etc. etc. So I decided to make a kind of mock-up, quick and cheap (around 15GBP and 2 hours). It turned out better than I expected...

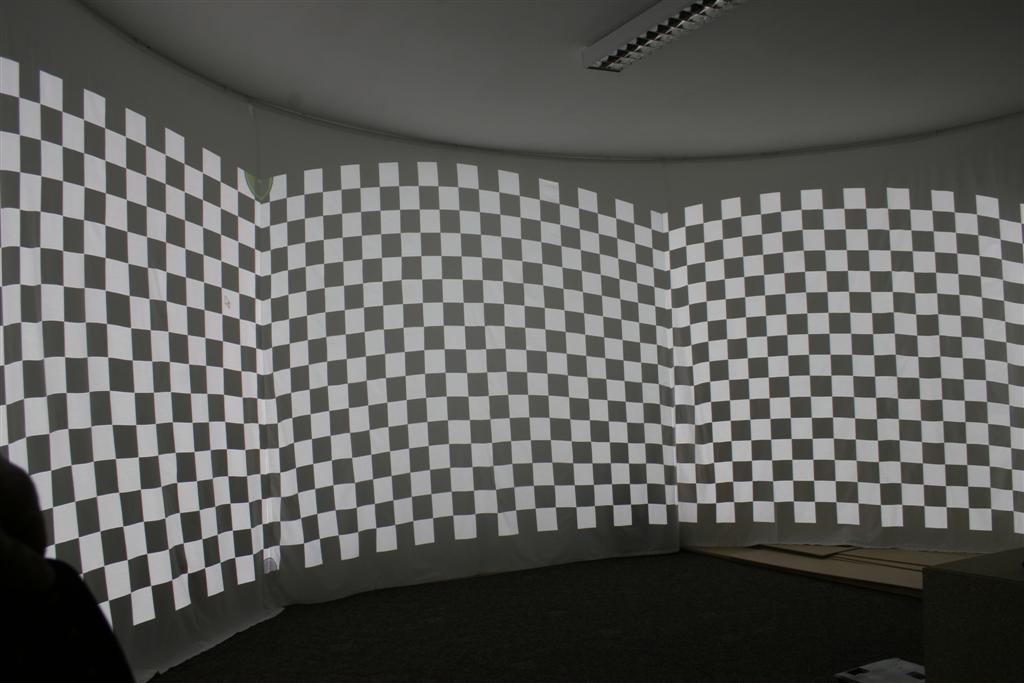

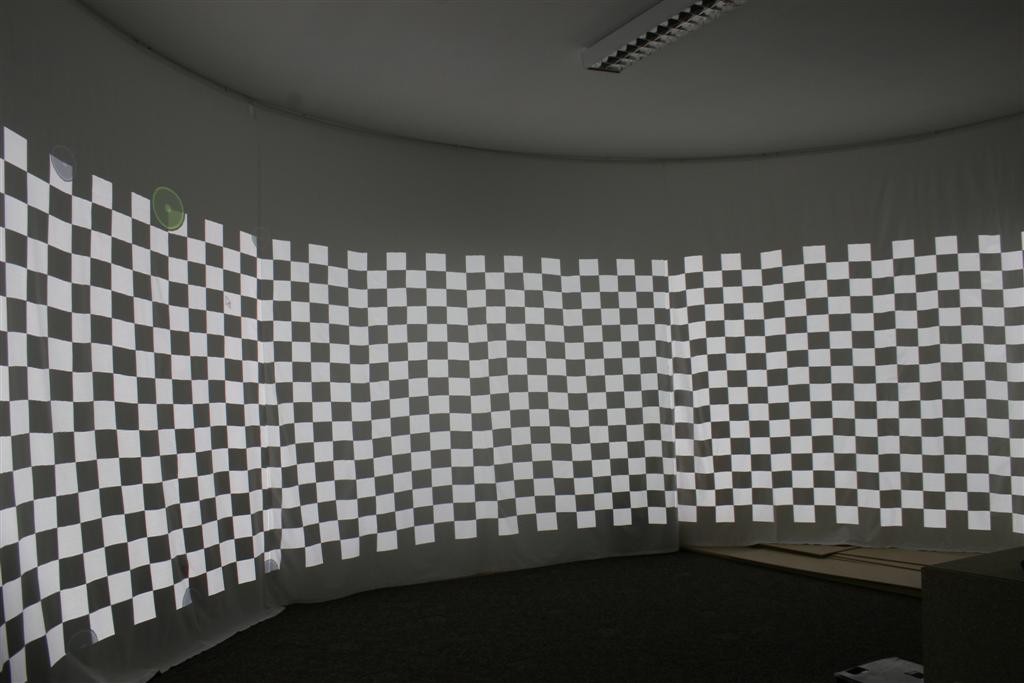

    Sol7 after a quick correction





    Last edited by Matt Olieman; 02-06-2010 at 10:43 PM. Reason: Change image code to reduce images

  2. #2
    Executive Vice President, MyCockpit


    Matt Olieman's Avatar
    Join Date
    Oct 2005
    Location
    Ocala, FL USA
    Posts
    3,155
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Seen your pics in the Gallery.... WOW nice, love to be in the center of that

    Nice Sean, thanks for the pics.

    Matt Olieman
    Last edited by Matt Olieman; 02-06-2010 at 10:51 PM. Reason: Fixed image code, removed statement regarding resizing images

  3. #3
    300+ Forum Addict Steve A's Avatar
    Join Date
    Jan 2009
    Location
    Paphos Cyprus
    Posts
    370
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Thats cool sean, can i ask you if you know if sol7 can work with 2 screens and a dualhead 2go as thats the route i have gone, for financial and space reasons, but looking at the curve you have created i would love to try it out with 2 beamers to see if its better than the straight screen i have at the moment. What a result for 15 quid, Im using the missus best table cloth lol

  4. #4
    500+ This must be a daytime job Sean Nixon's Avatar
    Join Date
    Jun 2008
    Location
    EGNT
    Posts
    713
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Thanks Matt & Steve.

    Steve, Sol7 definately works with the dual head (it also works with a single projector).

    I am helping a local sim builder set up a dual head system in a single garage (about 8ft wide). Sounds like it may be similar to what you want to do. I'll keep you informed of our progress.

  5. #5
    25+ Posting Member Airhogg's Avatar
    Join Date
    Dec 2008
    Location
    Signal Mountain, TN USA
    Posts
    53
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Hi Sean,
    That's awesome. Is that rear projection and what is the height of the image itself? Thanks!

  6. #6
    10+ Posting Member
    Join Date
    May 2009
    Location
    Netherlands
    Posts
    19
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Waauw!!!

    Sean this is even better than i thought! it looks superb!
    didnt think that the resolution used would give an image like this.

    i will keep you informed about the project, hmmm... you did tackle my urge to go on a holiday with these pictures


    Wil.

  7. #7
    25+ Posting Member tasmanet's Avatar
    Join Date
    Feb 2008
    Location
    Hobart , Australia
    Posts
    56
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Hi

    What is the width of the room ??

    Tas

  8. #8
    500+ This must be a daytime job Sean Nixon's Avatar
    Join Date
    Jun 2008
    Location
    EGNT
    Posts
    713
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Its forward projection, you can see one of the projectors bottom right (near the beer can!).

    I plan to flip the projectors over and hang them from the ceiling, so the image will end up nearer the ceiling rather the floor, by the same proportions as those in the photographs.

    Here are the dimensions as per the photos:

    Height of image = 1650mm or 65"

    Width of each image = 2600mm or 102" (x3 = 7800mm or 306")

    Projector throw = 2440mm or 96" (Acer X1230S Short Throw)

    Height of room = 2500mm or 98.5"

    Width of room = 5700mm or 224.5"

    Gap at bottom of image = 190mm or 7.5"

    Gap at top of image = 660mm or 26"

  9. Thanks Matt Olieman thanked for this post
  10. #9
    500+ This must be a daytime job BHawthorne's Avatar
    Join Date
    Dec 2007
    Location
    Wichita, KS
    Posts
    562
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    Looks great. Pretty much identical to my setup. I just bent plastic trim and tacked it to the walls and ceiling and put up raw canvas dropcloth for mine. Dirt cheap and it works great while dialing in everything.



    I've been running mine since around November. I'm using Optoma EX525ST short throw projectors. The pic above is a bit dated. In that pic I'd yet to ceiling mount the projectors or trim the screen and tighten up the slack in the screen.

  11. Thanks Matt Olieman thanked for this post
    Likes markfire liked this post
  12. #10
    500+ This must be a daytime job ian@737ng.co.uk's Avatar
    Join Date
    Jan 2006
    Location
    Oswestry, Shropshire
    Posts
    677
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Pictures of my curved screen setup

    hello capt. nixon.......
    i'm totally 'bombed out'. this is amazing! it's just not fair, you dont have to compete with the bride's car for space
    i would be VERY INTERESTED in how you get on with your buddy and the 8' width because (as you know) i am
    governed by a width constraint. keep us posted please.
    thanks for making me insanely jealous
    have a great week sean.... regards .... ian
    Mr. Ian. P. Sissons is hereby recognised as an Honorary Flight Sim Captain following his passing in February 2016. This is in recognition for his commitment to Flight Simulation.
