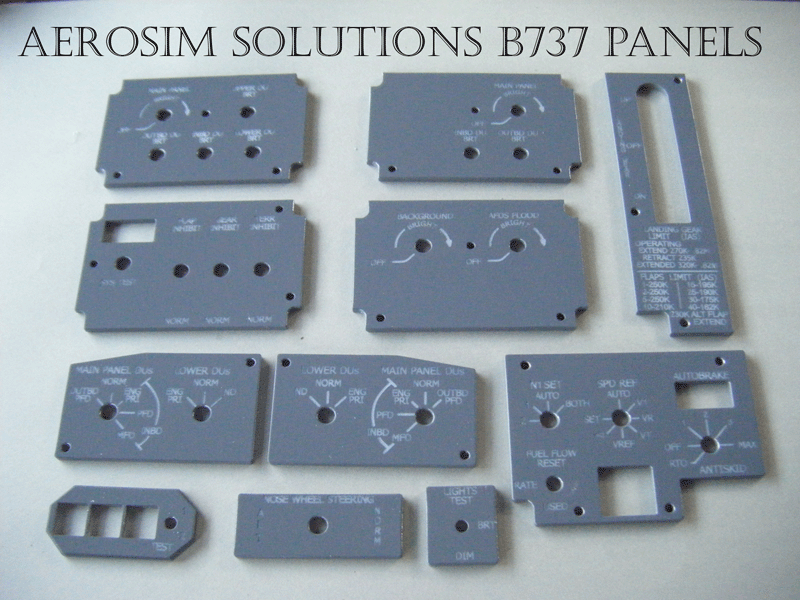

    B737 MIP panels

    Hi all,
    I have just completed my first two sets of backlight panels for the 737 MIP, they have turned out great and the text lights up really well. My CNC machine had a problem with losing steps and it wrecked a few panels before my mate Denham fixed it for me. I had a faulty parallel port on the PC and the addition of an add on PCI parallel port chased the gremlins away, the engraving is really good now. Denham is the Director of Science and Exhibits at www.scitech.org here in Perth and we will probably join forces for a few other CNC 'projects', we may be building a larger CNC machine.




    Gwyn
    Last edited by Westozy; 02-02-2010 at 07:27 PM.

    737NG using Prosim737, Immersive Calibration Pro, Aerosim Solutions motorized TQ & cockpit hardware, CP Flight MCP & FDS SYS1X, SYS2X & SYS4X, FDS PRO FMCs, AFDS units & Glarewings, Matrix Orbital ELEC display, Pokeys Landing & Cruise alt display, Buttkicker Gamers, 3 x BenqMW811ST projectors with a Matrox Th2Go
    http://www.aerosimsolutions.com.au
    Supporter of MyCockpit.org, please join me in donating!!!

  2. Thanks Matt Olieman, weshollett, autocadplease thanked for this post
  3. #2
    10+ Posting Member weshollett's Avatar
    Join Date
    Aug 2007
    Location
    Perth WA
    Posts
    24
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

    Fantastic work Gwyn !!!

  4. #3
    75+ Posting Member davek's Avatar
    Join Date
    Jan 2008
    Location
    FNQ Australia
    Posts
    139
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

    As usual Gwyn, great work. Picture doesnt do it justice though, cant quite see all the detail.
    Cheers
    Dave

  5. #4
    MyCockpit Support Staff


    Westozy's Avatar
    Join Date
    Nov 2005
    Location
    Perth, Western Australia
    Posts
    1,488
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

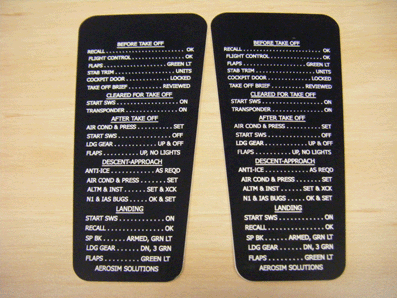

    Hi all, I'll get some close up shots of the panels later on. Here's something else I made this week....




    Gwyn

    737NG using Prosim737, Immersive Calibration Pro, Aerosim Solutions motorized TQ & cockpit hardware, CP Flight MCP & FDS SYS1X, SYS2X & SYS4X, FDS PRO FMCs, AFDS units & Glarewings, Matrix Orbital ELEC display, Pokeys Landing & Cruise alt display, Buttkicker Gamers, 3 x BenqMW811ST projectors with a Matrox Th2Go
    http://www.aerosimsolutions.com.au
    Supporter of MyCockpit.org, please join me in donating!!!

  6. Thanks Matt Olieman thanked for this post
  7. #5
    500+ This must be a daytime job



    Join Date
    Jan 2009
    Location
    Tampa
    Posts
    531
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

    Hi Gwyn,

    Awesome work there pal! I know you get this a lot, but could you describe the material, paint, and engraving bits used to produce these? If the same were used here as on the previous pics you posted then just let me know that, no need repeating yourself!

    I have been making some decent progress with ny CNC machine as well, I hope to get some results worth showing off soon!

    Thanks,

    Buddy

  8. #6
    150+ Forum Groupie riche543's Avatar
    Join Date
    May 2008
    Location
    Sydney Australia
    Posts
    264
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

    Hey Gwyn ,
    Those panels are looking great.. I have a question for you regarding setting the depth for when you are engraving.. Now could you tell me how you get the exact same depth for engraving after tool change etc etc. as im having to do mine by eye , IE: I bring the z axis down until it just basically tickles the paint surface 9 times out of 10 this works ok, just wundering if you had a diffrent way of doing it. I know you can get mill ends with a depth ring on them but my guess is that they would be ok for cutting but not engraving as a 1/4 of a mm can make all the diffrence.. Cheers

    Riche..

  9. #7
    MyCockpit Support Staff


    Westozy's Avatar
    Join Date
    Nov 2005
    Location
    Perth, Western Australia
    Posts
    1,488
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

    Hi guys and thanks for the comments!
    When bringing the tool down to the surface of the material, put some paper under the tool and nudge the tool down until it grips the paper then set the Z axis to zero. I use this method always for all cutting tools. For these backlight panels I am using 4.5mm opal acrylic painted with epoxy enamel spray paint and I am using a 3mm - 25 degree - 0.5mm tip. I engrave to a depth of 0.15mm, 0.1mm would probably be enough actually.I buy my cutters from here - http://www.virtual-village.com.au/cnc-bits they are quite cheap!

    Iv'e tried to upload more pics this morning without success, there appears to be a glitch with the uploading.

    Cheers, Gwyn

    737NG using Prosim737, Immersive Calibration Pro, Aerosim Solutions motorized TQ & cockpit hardware, CP Flight MCP & FDS SYS1X, SYS2X & SYS4X, FDS PRO FMCs, AFDS units & Glarewings, Matrix Orbital ELEC display, Pokeys Landing & Cruise alt display, Buttkicker Gamers, 3 x BenqMW811ST projectors with a Matrox Th2Go
    http://www.aerosimsolutions.com.au
    Supporter of MyCockpit.org, please join me in donating!!!

  10. #8
    MyCockpit Support Staff


    Westozy's Avatar
    Join Date
    Nov 2005
    Location
    Perth, Western Australia
    Posts
    1,488
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

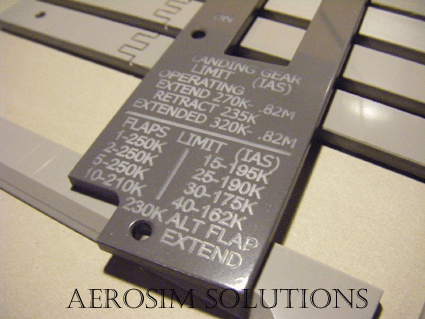

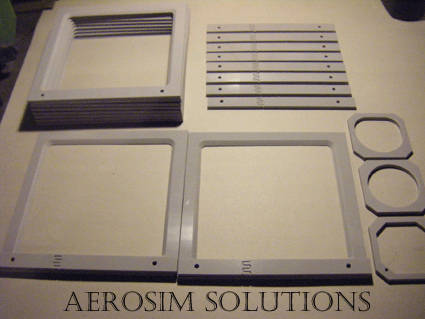

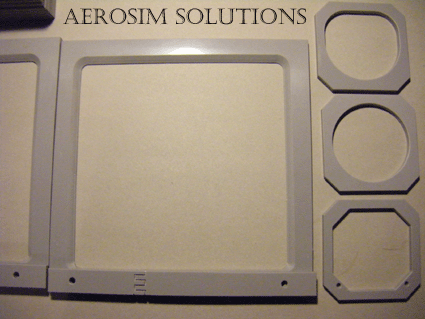

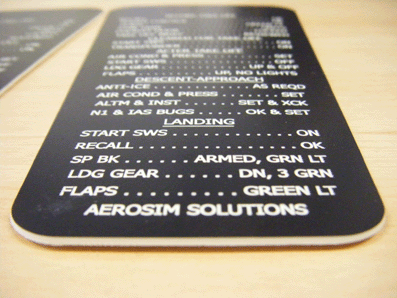

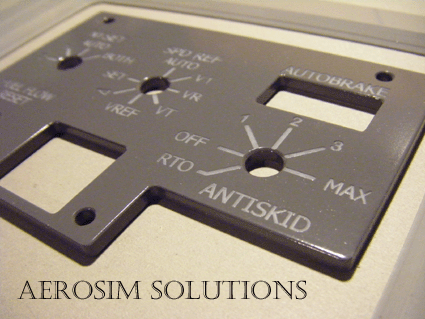

    Success with the picture uploads! Here's a few more with close ups for Dave!!!






    Gwyn
    Last edited by Westozy; 02-05-2010 at 07:11 AM.

    737NG using Prosim737, Immersive Calibration Pro, Aerosim Solutions motorized TQ & cockpit hardware, CP Flight MCP & FDS SYS1X, SYS2X & SYS4X, FDS PRO FMCs, AFDS units & Glarewings, Matrix Orbital ELEC display, Pokeys Landing & Cruise alt display, Buttkicker Gamers, 3 x BenqMW811ST projectors with a Matrox Th2Go
    http://www.aerosimsolutions.com.au
    Supporter of MyCockpit.org, please join me in donating!!!

  11. #9
    25+ Posting Member maliga00's Avatar
    Join Date
    May 2008
    Location
    Argentina
    Posts
    35
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

    Excelent!!!, Would you tell us about de process ?, software used, fonts, etc, etc, etc,
    thanks in advance
    Alberto

  12. #10
    MyCockpit Support Staff


    Westozy's Avatar
    Join Date
    Nov 2005
    Location
    Perth, Western Australia
    Posts
    1,488
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: B737 MIP panels

    Quote Originally Posted by maliga00 View Post
    Excelent!!!, Would you tell us about de process ?, software used, fonts, etc, etc, etc,
    thanks in advance
    Alberto
    Hi Alberto, I'll put together a tutorial with photos and post it to the site soon!

    Gwyn

    737NG using Prosim737, Immersive Calibration Pro, Aerosim Solutions motorized TQ & cockpit hardware, CP Flight MCP & FDS SYS1X, SYS2X & SYS4X, FDS PRO FMCs, AFDS units & Glarewings, Matrix Orbital ELEC display, Pokeys Landing & Cruise alt display, Buttkicker Gamers, 3 x BenqMW811ST projectors with a Matrox Th2Go
    http://www.aerosimsolutions.com.au
    Supporter of MyCockpit.org, please join me in donating!!!
