    Thumbs up Completed Mikes Flightdeck Instrument

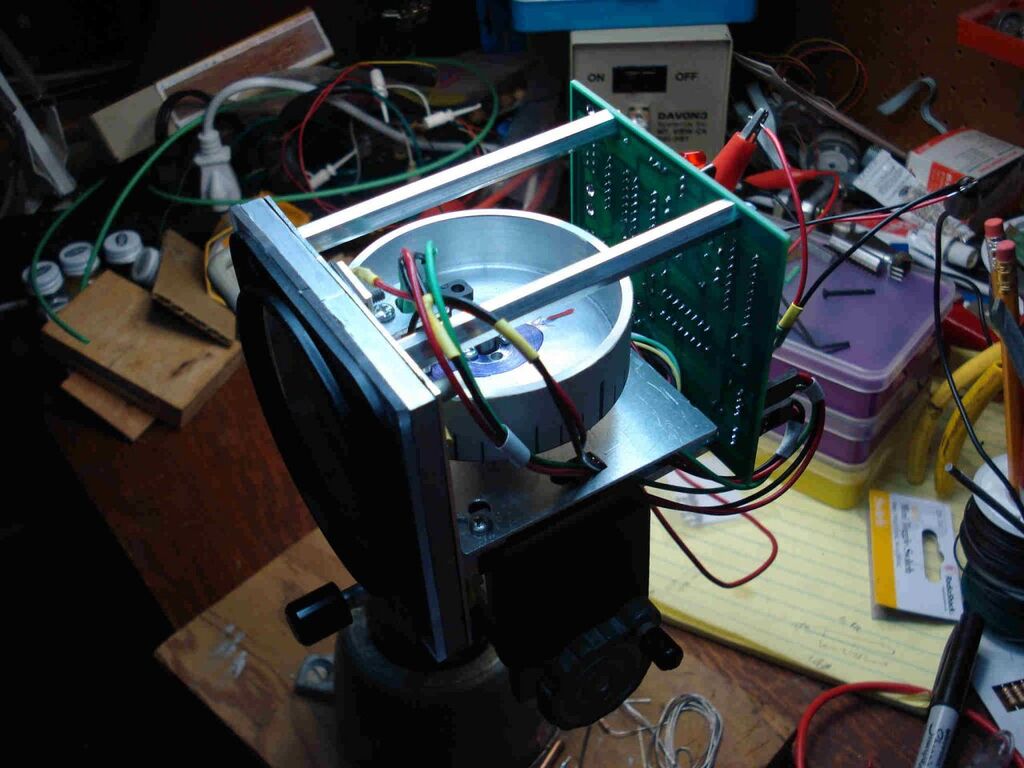

    I have completed my first Mikes Flightdeck instrument; a directional gyro circa 1959. Modern gyro compasses have a vertical compass rose while old style had a rotating drum for the compass rose. This instrument is controlled by a PIC microcontroller. At power on, it seeks home and allows compass heading adjustment. Success. I am writing a test driver program to test the RS485 communication system. Stay tuned.

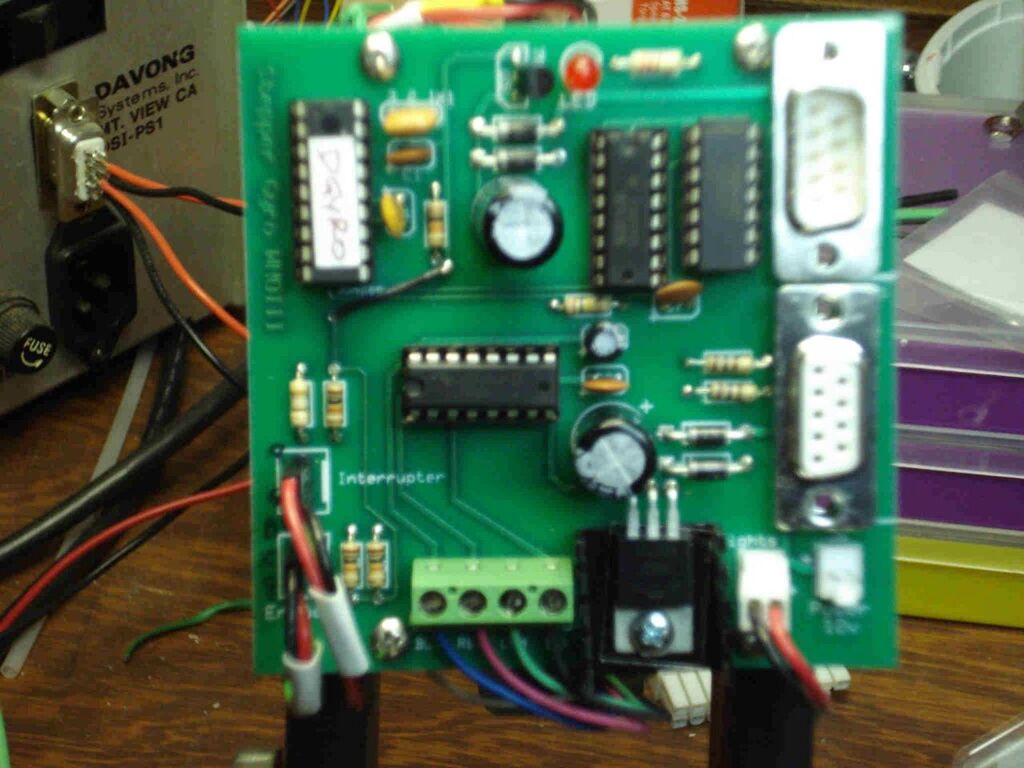

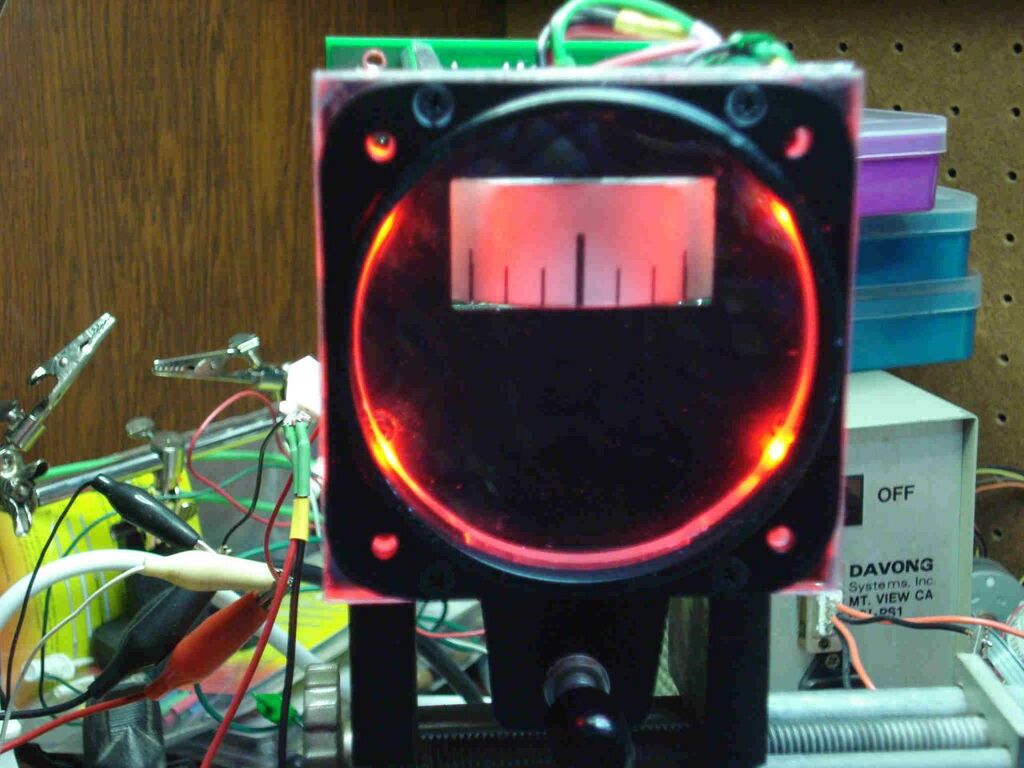

    Custom designed circuit board mounts all the circuitry in the same size as the instrument (3.25" square). I made a front bezel mold and cast a resin faceplate to increase the realism. I am still deciding how to make the compass degree values which explains the white paper markings on the compass drum. Mike is right, making realistic looking instrument faces is difficult as the origninals were silk screened with paint.

    Tripacer



    Last edited by Matt Olieman; 12-04-2009 at 08:17 AM. Reason: Set up photos for you :) :) :)

  2. Thanks Matt Olieman thanked for this post
  3. #2
    25+ Posting Member smendlik's Avatar
    Join Date
    Oct 2009
    Location
    Broadview Hts, Oh
    Posts
    73
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Completed Mikes Flightdeck Instrument

    Any chance for larger photos? I'm jealous that you have actually made one, I'm reading his book right now and hope to make some some day soon!

  4. #3
    25+ Posting Member
    Join Date
    Nov 2007
    Location
    Mobile, AL
    Posts
    51
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Completed Mikes Flightdeck Instrument

    Thanks,
    I posted more photos in the General Aviation section of the photo gallery. I think that they are larger but I haven't checked yet. Benn busy building a power supply out of an old ATX pc power supply to power some of the instruments.

    Tripacer

  5. #4
    25+ Posting Member smendlik's Avatar
    Join Date
    Oct 2009
    Location
    Broadview Hts, Oh
    Posts
    73
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Completed Mikes Flightdeck Instrument

    Found them, good looking gauge.

  6. #5
    Executive Vice President, MyCockpit


    Matt Olieman's Avatar
    Join Date
    Oct 2005
    Location
    Ocala, FL USA
    Posts
    3,155
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: Completed Mikes Flightdeck Instrument

    Set up the photos for you Tripacer

    Fantastic job, looks great, nice work and thanks for the pics.
