    737 Throttle levers

    I have started my home build throttle and have been searching across the net for various parts i can purchase, This is so i can save a little time with the build but mostly because i just dont have access to the certain tools needed to do a high quality job.

    I have sourced throttle knobs and handles from a few suppliers but what im really looking for is the actual Throttle levers, They are quite intricate in shape and i would be kidding myself if i thought i could be happy with what i could make with the tools i have.

    So do any of you guys know of a supplier or even a freind here who would make them for me?

    Thanks Steve

  2. #2
    500+ This must be a daytime job autocadplease's Avatar
    Join Date
    Jan 2008
    Location
    British Columbia, Canada
    Posts
    521
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    Have checked out some of the throttle tutorials http://www.mycockpit.org/fileshare/s...?e=31&catid=27.
    All you really need is a jigsaw, a file and a drill. Easier then you think.

    Another option would be to give the CAD drawings to a fab shop with a CNC machine and they could cut the pieces out for you.
    Grant D.
    Nelson,B.C. Canada
    Win7 32bit, FSX, PM Boeing, TH2GO, GEX, VoxATC

  3. Thanks Steve A thanked for this post
  4. #3
    75+ Posting Member
    Join Date
    Feb 2008
    Location
    melbourne
    Posts
    135
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    I'm sure some nice person will help you with a supplier....but don't be too hard on yourself.
    In the dark early days, i used the cad drawings that float around to cut handles with a jigsaw.... then filed them and sanded/primed again and again and again.
    a router is also handy to sink the micro switch for the reverser's too.

    you will get them absolutely perfect. might take all weekend though.

    then you deserve a nice cold beer.

    dave
    www.flightfacsimile.com
    Select Boeing 737 Simulator Components from Australia

  5. Thanks Steve A thanked for this post
  6. #4
    300+ Forum Addict Steve A's Avatar
    Join Date
    Jan 2009
    Location
    Paphos Cyprus
    Posts
    370
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    Thanks for the encouragement and link to the tutorial and drawings. I just need a link to drawings for the levers now and im all set to start cutting

    Edit found what i need

  7. #5
    Executive Assistant Geremy Britton's Avatar
    Join Date
    Jul 2007
    Location
    North,East England
    Posts
    1,597
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    Steve, So your building one yourself then!

    I wish you the best of luck and i'm happy to provide you with the resources i have. Although this isn't my work i don't take any credit for it. Someother kind person has both this together. Look at the pictures and also the PDF attachment at the bottom for some dimensions. once again i have no claim to their accuracy though.

    Enjoy






    Attached Files Attached Files
    Geremy Britton
    Executive Assistant, MyCockpit Inc
    Head of GLB Flight Products
    www.geremy.co.uk

  8. Thanks Steve A, autocadplease, Michael S, t1dUs thanked for this post
  9. #6
    MyCockpit Support Staff


    Westozy's Avatar
    Join Date
    Nov 2005
    Location
    Perth, Western Australia
    Posts
    1,487
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    Hi Steve,

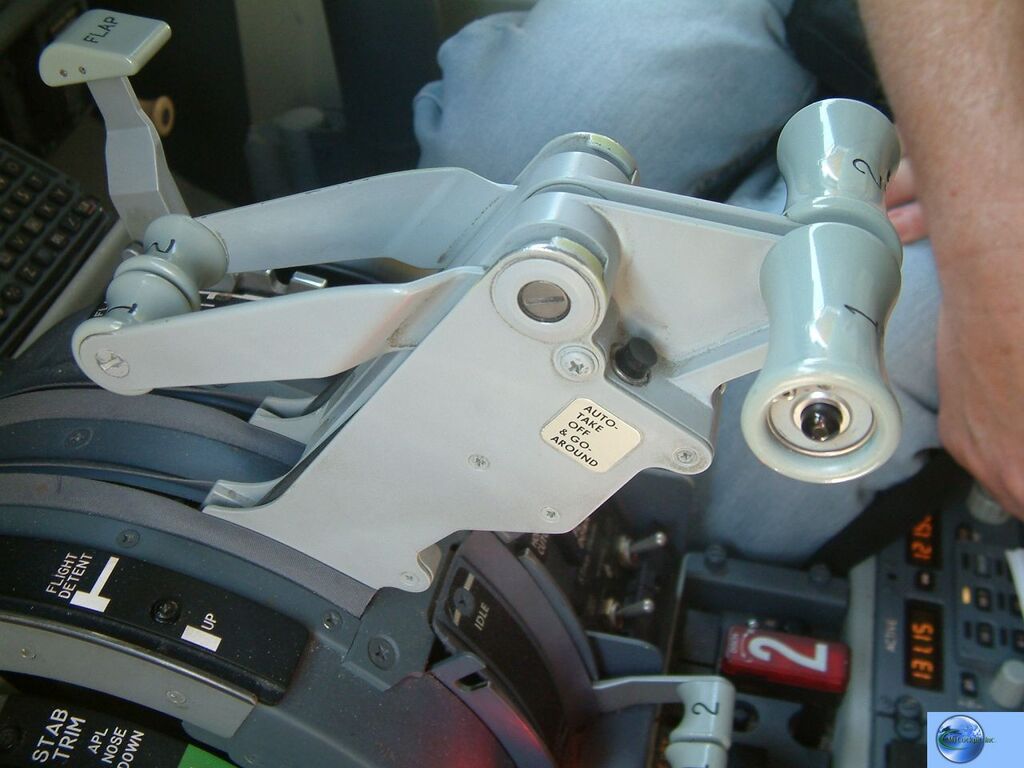

    Here's a pic of the workings of the levers I made...





    The real thrust levers!

    Regards, Gwyn
    Last edited by Westozy; 10-21-2009 at 09:50 PM.

    737NG using Prosim737, Immersive Calibration Pro, Aerosim Solutions motorized TQ & cockpit hardware, CP Flight MCP & FDS SYS1X, SYS2X & SYS4X, FDS PRO FMCs, AFDS units & Glarewings, Matrix Orbital ELEC display, Pokeys Landing & Cruise alt display, Buttkicker Gamers, 3 x BenqMW811ST projectors with a Matrox Th2Go
    http://www.aerosimsolutions.com.au
    Supporter of MyCockpit.org, please join me in donating!!!

  10. Thanks Michael S, Steve A, autocadplease thanked for this post
  11. #7
    300+ Forum Addict phil744's Avatar
    Join Date
    Aug 2007
    Location
    Lancashire, england
    Posts
    354
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    Geremy, those pics are of the 767-400 TQ not the 737, and the PDF is for the number 3 lever for the 747-400 TQ, i know i did it just so no one gets confused.

    I was bored so gave it a go also, based on bits of measurments floating around on the internet so I CANT BE 100% SURE OF ITS ACCURACY, but somthing to help you along

    autocad 2D of one of the levers, and a 3D .IGS file of the same lever, ohh and a picture.

    Must i must stress again chaps, it wont be 100% true to the original, its just to give you an idea and somthing to play with

    Enjoy
    Attached Images Attached Images
    Attached Files Attached Files
    - - - - - - - - - - - -
    Philip Lambert

    747-400? nah probably 767 now, FS9, FDT simboards , dunnow about software yet

    www.simvionics.co.uk

  12. #8
    300+ Forum Addict Steve A's Avatar
    Join Date
    Jan 2009
    Location
    Paphos Cyprus
    Posts
    370
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    Fantastic response!!

    Strangely a workmate offered to sell me a router today, so its all systems go

  13. #9
    Executive Assistant Geremy Britton's Avatar
    Join Date
    Jul 2007
    Location
    North,East England
    Posts
    1,597
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    It certainly is! Plenty of stuff there for you to make a good go of making throttles. Must be a good response because you're builder of the month. Lap it up whilst you can ... 7 days left until your succeeder

    Live up to the name ... builder of the month... go ahead get building!

    LOL
    Geremy Britton
    Executive Assistant, MyCockpit Inc
    Head of GLB Flight Products
    www.geremy.co.uk

  14. #10
    300+ Forum Addict Steve A's Avatar
    Join Date
    Jan 2009
    Location
    Paphos Cyprus
    Posts
    370
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Re: 737 Throttle levers

    I could do with just a little bit more help before i dive in.

    I want to use slide pots but im a little confused about how to physically connect them to the levers, all i can see from pictures is a little square tab on the pot. Does anyone have a picture or drawing?
