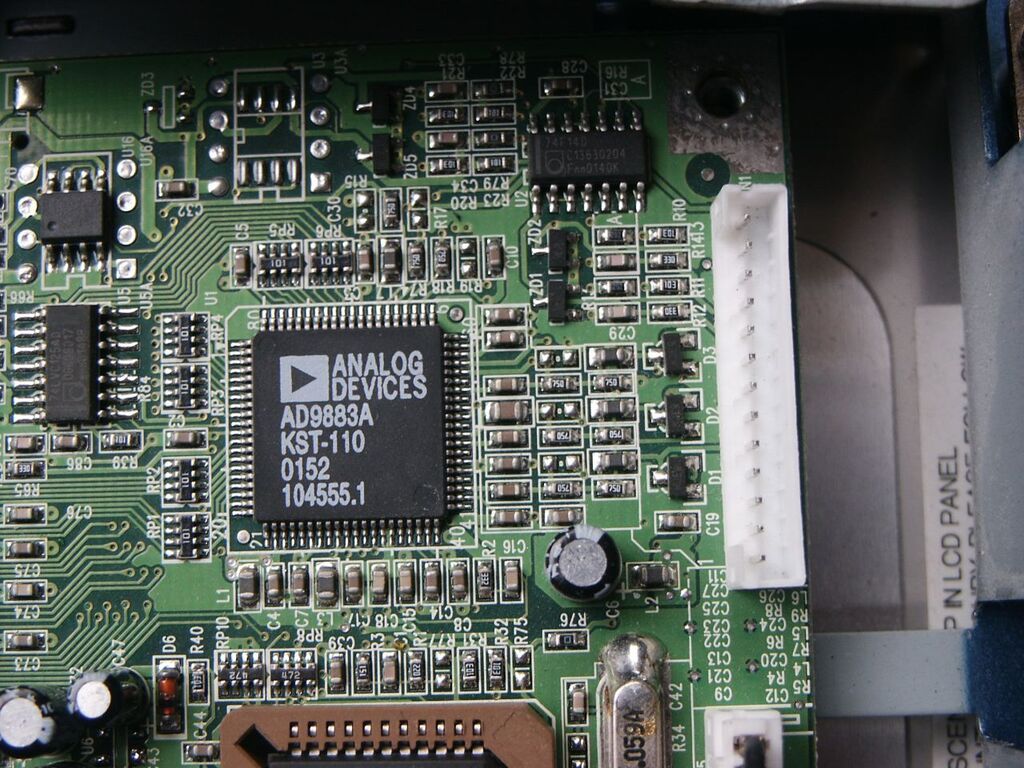

    VGA connector on printplate LCD monitor

    The wiring of the VGA connector on the printcard (13 pins in a row) is loose.

    Does someone know the pin-0ut of this print connector ( RGB Sync etc)?
    The PC side of the cable is a normal D-Sub.



    Thanks in advance for your help.
