    Some tasty new pics...

    I finally had a chance to pull these off my camera last night...

    Opening the canopy...



    You just HAVE to wear a helmet? Use a lower seat.



    'sup, dudes?



    Rob, my official sanity checker:



    Test fit of all the instrument panel components:







    The view behind the panel.


    I will be providing the CAD files for the instrument panels so you guys can design the panel exactly how you want it. I may also offer a panel cutting service using 1/8" tempered hardboard.

    The panel installation procedure is kind of odd. You need to put the forward panel support arch in place (not bolted down - you rest it against the forward face of the windscreen), then bend the panel a bit to get it into place, THEN you install the arch where it's supposed to go (5.50" ahead of the windscreen face) and then attach the panel to the arch and the upper portion of the left & right fuselage ribs.

    Questions? Comments? Rotten tomatoes?

    g.

  2. #2
    1000+ Poster - Fantastic Contributor Tomlin's Avatar
    Join Date
    Nov 2005
    Location
    Waycross, GA
    Posts
    1,188
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    No tomatoes from me- this looks really cool!
    Eric Tomlin-
    Learjet 45 Builder
    www.flightlevel180.org

  3. #3
    300+ Forum Addict
    Join Date
    Apr 2008
    Location
    Graham, WA
    Posts
    323
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Thanks Eric. I'm hoping it won't be more than a week before I'm ready to start plotting plan sets.

    g.

  4. #4
    300+ Forum Addict Rodney's Avatar
    Join Date
    Nov 2005
    Location
    Colorado Springs, CO USA
    Posts
    370
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    What an imersion factor that is going to be when done. Some very fine craftsmanship. Although it looks very complex, you make it look easy.
    Rodney -
    Real 727-200 pit
    Last Flown as N392PA
    FS9

  5. #5
    300+ Forum Addict
    Join Date
    Apr 2008
    Location
    Graham, WA
    Posts
    323
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Thanks Rodney. You'll be able to make one too. I designed it to be as simple to build as possible. The plan set will be somewhere south of $50.

    The windscreen/canopy isn't even required. It's an option you can build if you've got access to a standard sized table saw. A table saw is required because there are a few 10 degree and many 23.5 degree angle cuts needed to build the windscreen and canopy.

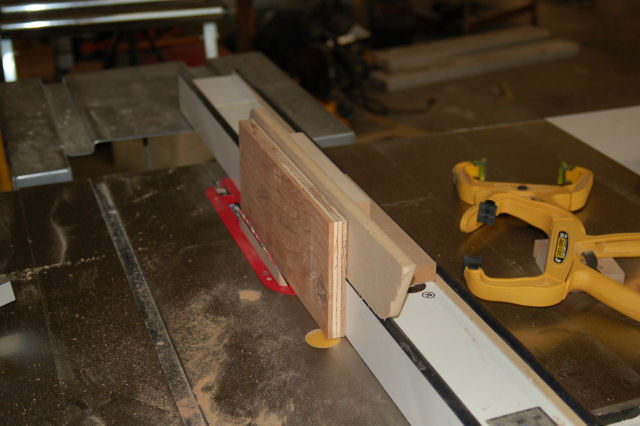

    For example, you need to use what is called a "tenon jig" to cut the angle required for the windscreen top cap:
