    A320 MIP Ilumination

    Hi guys,

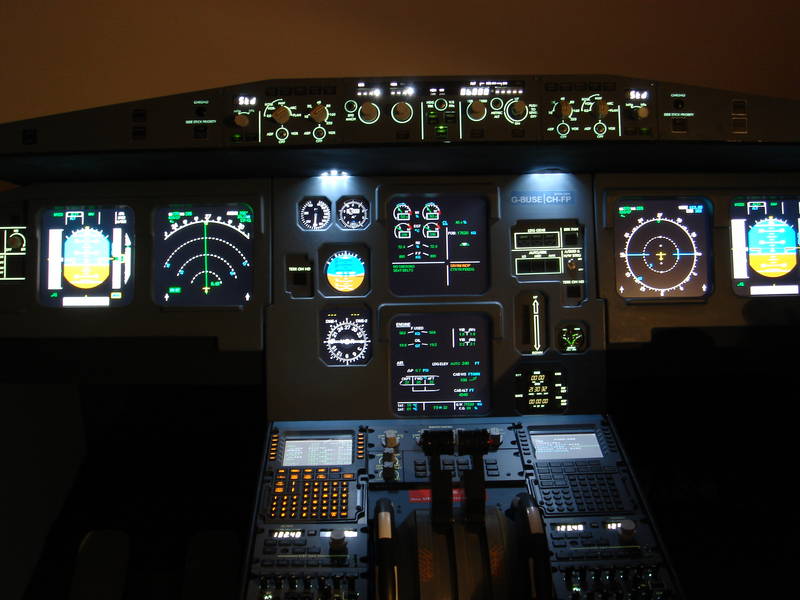

    I've seen in the Photo Gallery that some of you have achieved great effects in the lighting of the Captain and FO panels, as well as both lights located on the pedestal area of the MIP. (This particular pic is from Suggy)



    I assume the best option for these are LEDs. Any particular idea or recommendation? What have you used?

    Thanks!
    Luis Gordo
    Instructor StationTM - www.iStationGordo.com

  2. #2
    2000+ Poster - Never Leaves the Sim Trevor Hale's Avatar
    Join Date
    Nov 2005
    Location
    Ontario, Canada
    Posts
    2,432
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    I use white christmas lights I can dim them with a standard 120V Dimmer. Works nice in my pit.
    ________________________
    Trevor Hale

  3. #3
    150+ Forum Groupie andarlite's Avatar
    Join Date
    May 2007
    Location
    Mississauga, Ontario, Canada
    Posts
    282
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Hey Trev

    Don't they generate a lot of heat.... oh wait, considering where you live with those long winters, I guess you need the heat.

    Regards,
    Henry

  4. #4
    1000+ Poster - Fantastic Contributor Bob Reed's Avatar
    Join Date
    Oct 2005
    Location
    Holley, New York U.S.A.
    Posts
    1,880
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Quote Originally Posted by andarlite View Post
    Hey Trev

    Don't they generate a lot of heat.... oh wait, considering where you live with those long winters, I guess you need the heat.

    Regards,
    Henry
    Oh No!!!!! TOO FUNNY!!!!
    Bob Reed

  5. #5
    150+ Forum Groupie Suggy's Avatar
    Join Date
    Oct 2005
    Location
    Hull, England
    Posts
    153
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Panels are lighted using EL sheeting. The lights illuminating the MIP are leds grouped togethr with each led fitted with an led light diffuser.

    Regards,

    Suggy

  6. #6
    300+ Forum Addict luisgordo's Avatar
    Join Date
    Jan 2007
    Location
    Houston, TX
    Posts
    304
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Hey guys,

    Thanks for your inputs. Suggy, any particular supplier? How many leds are you using?

    Thanks!
    Luis Gordo
    Instructor StationTM - www.iStationGordo.com

  7. #7
    150+ Forum Groupie Suggy's Avatar
    Join Date
    Oct 2005
    Location
    Hull, England
    Posts
    153
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    My EL sheets and inverters were from UK Farnells -

    http://uk.farnell.com/jsp/search/bro...questid=359529

    There are six 5mm white leds for each of the two lights shining down from onto the MIP (from the underside of the glareshield). I put clear covers on them to diffuse the light better:

    http://www.maplin.co.uk/module.aspx?...2072&doy=26m11


    Regards,

    Suggy

  8. #8
    300+ Forum Addict luisgordo's Avatar
    Join Date
    Jan 2007
    Location
    Houston, TX
    Posts
    304
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Thanks Suggy, much appreciated.
    Luis Gordo
    Instructor StationTM - www.iStationGordo.com

  9. #9
    2000+ Poster - Never Leaves the Sim Trevor Hale's Avatar
    Join Date
    Nov 2005
    Location
    Ontario, Canada
    Posts
    2,432
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    Quote Originally Posted by andarlite View Post
    Hey Trev

    Don't they generate a lot of heat.... oh wait, considering where you live with those long winters, I guess you need the heat.

    Regards,
    Henry
    LOL Yeah I do need it, however with them dimmed It isn't too bad. I am using 50 light strings, and it isn't too bad. I do have air conditioning in the sim. I am using 1 string for the overhead, 1 string for the pedistal, and one string for the mip.

    150 lights total, less 1/5th of that on your Christmas tree, as you can see there isn't that much heat to worry about, even in the concealed cockpit shell.

    Trev
    ________________________
    Trevor Hale

  10. #10
    2000+ Poster - Never Leaves the Sim Michael Carter's Avatar
    Join Date
    Oct 2006
    Location
    Southern Illinois, USA
    Posts
    3,147
    Contribute If you enjoy reading the
    content here, click the below
    image to support MyCockpit site.
    Click Here To Contribute To Our Site

    The early Boeing jets used both fluorescent tubes (3) and incandescent lighting under the glareshield.

    My center and left sections each have an eight watt 15" fluorescent tube mounted in the original locations, and four 24VDC incandescent fixtures under each section.

    The original fluorescent fixtures were unusable as they were wired for 115VAC 400 Hz power. They were removed and commercial fixtures were purchased and installed.

    Each incandescent fixture has a rotatable metal barrel with a small rectangular opening for directing the lights individually.
    Boeing Skunk Works
    Remember...140, 250, and REALLY FAST!
