    Project Intruder

    Greetings all,

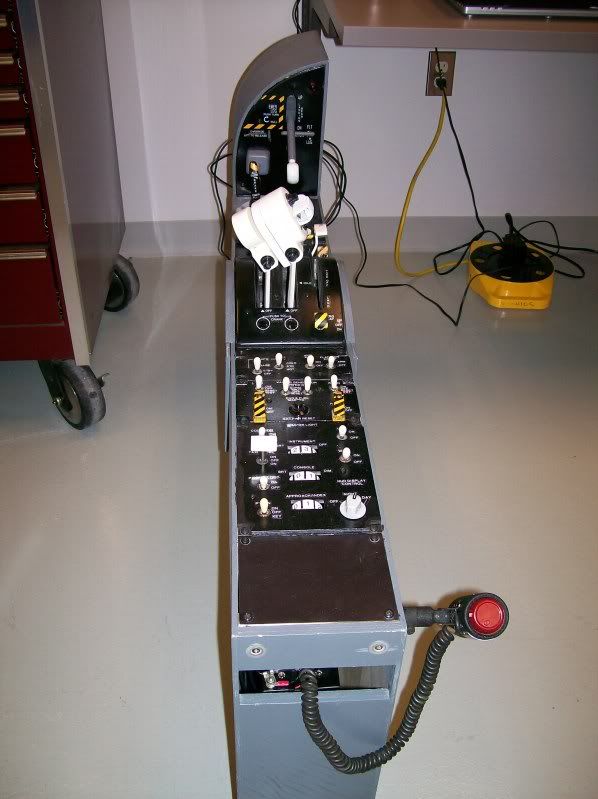

    Here are some pics of my rig. Right now it is modular, so I can get it around. I have been working on the Pilot's console for some time now, the stick has been my latest addition. I ripped apart a MS FFB 2 joystick, used the motors and PCB's and went crazy. The forces need some work, I need to find some





    RC motors to replace the pitch motor. I made the upper assembly much too heavy, but wiith some work I think it will do fine.

    Enjoy, Christopher
